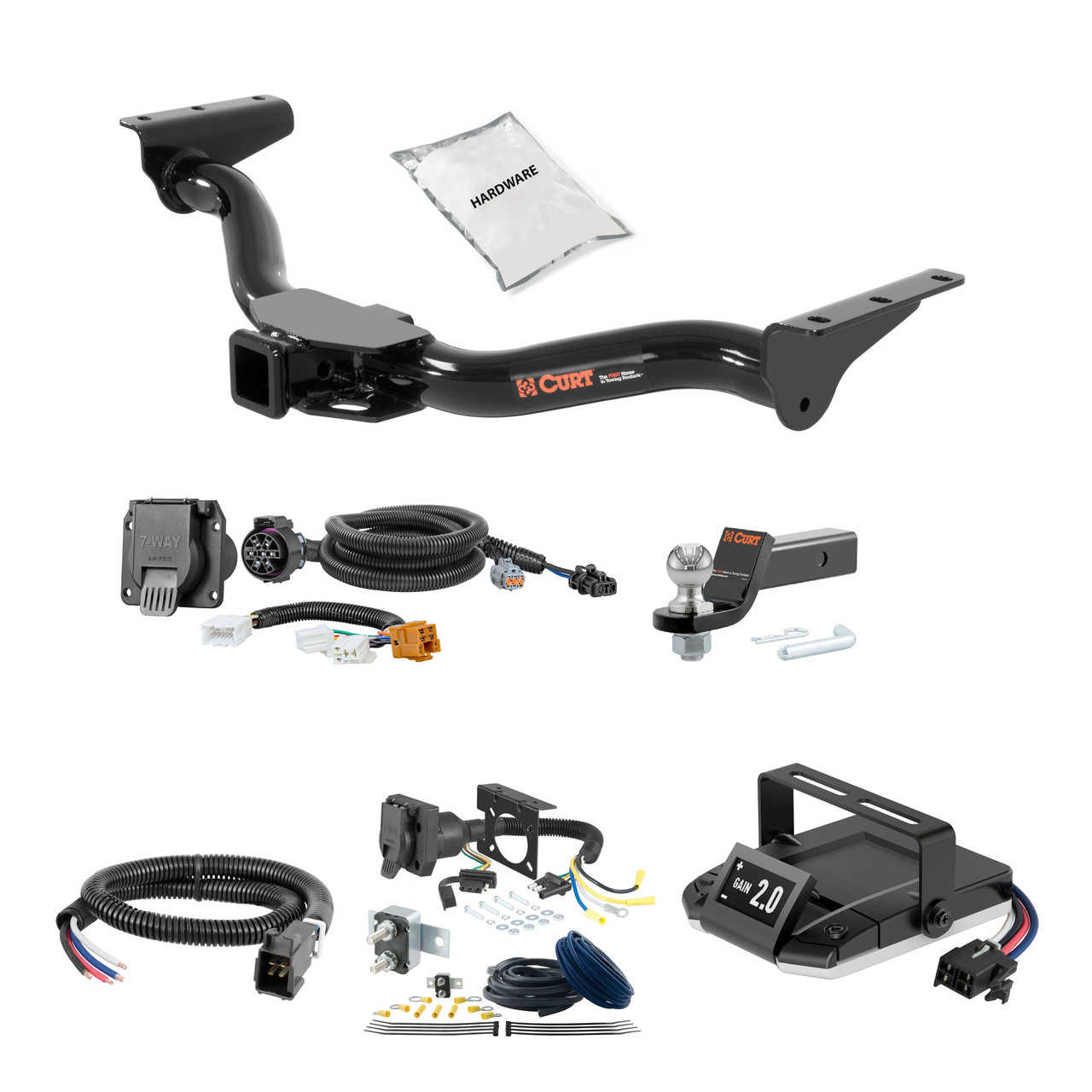

This trailer hitch + brake controller bundle is for: 00 - 04 Nissan Xterra
- Trailer Hitch
- Trailer Hitch Hardware
- Trailer Hitch Installation Instructions
- Curt Assure Brake Controller
- Trailer Brake Controller Wiring Kit
- Trailer Brake Controller Pigtail Connector
- Ball Mount
- Trailer Ball
- Dual Output 4-way/7-way connector
- Wiring diagrams
- Circuit Breakers & Fuses
- Zip Ties
Trailer Hitch
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Xterra (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
- Rated to 4,000 lbs. gross trailer weight and 400 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 600 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Specifications
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 400 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 4,000 LB |
| Weight Distribution (WD) | 6,000 LB |
| Weight Distribution Tongue Weight (WDTW) | 600 LB |
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Round |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
Vehicle 4 Way Converter
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Nissan Frontier, Pathfinder, Xterra and Suzuki Equator (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
- Plugs into existing OEM vehicle socket to provide a 7-way RV blade socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
- Spring-loaded dust cover keeps connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
Specifications
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 7-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S5 |
| Warranty | One-Year Limited Warranty |
Nall Mount w/ Ball
When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2" trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 7-1/2", a drop of 2" and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2" x 2" shanks and are made with the same superior quality we put into each of our products.
- Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
- Fits trailer hitches with a 2" x 2" receiver tube opening
- Factory-torqued CURT trailer ball accepts a 2" coupler
- 2" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Trailer ball features a polished chrome-plated finish
- 5/8" hitch pin & clip for secure mounting in receiver tube
- Limited lifetime warranty (one-year finish, one-year parts)
- Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
- Fits trailer hitches with a 2" x 2" receiver tube opening
- Factory-torqued CURT trailer ball accepts a 2" coupler
- 2" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Trailer ball features a polished chrome-plated finish
- 5/8" hitch pin & clip for secure mounting in receiver tube
- Limited lifetime warranty (one-year finish, one-year parts)
Specifications
| Ball Diameter | 2 IN |
| 10282 | Yes |
| Color | Black |
| Drop | 2 IN |
| Gross Trailer Weight (GTW) | 7,500 LB |
| Material | Carbon Steel |
| Receiver Tube Size | 2 IN |
| Shank Diameter | 2 IN |
| Tongue Weight (TW) | 750 LB |
| Truckload Dom Pickup Location | Eau Claire, Wi |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
ASSURE PROPORTIONAL TRAILER BRAKE CONTROLLER WITH DYNAMIC SCREEN
- Pressure-sensitive manual override button for precise braking power
- Large, high-quality 1-1/2" OLED screen displays full text readout
- Sleek, low-profile design with tactile buttons
- Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
- Third axis provides dynamic power adjustments when going up or down a hill
- Display can be tilted for different mounting options, above or below the dash
- Diagnostic alerts notify of potential problems like low voltage or disconnect
- Automatic leveling and calibration eliminate setup requirements
- Mounts at various angles, above or below the dash, to increase usability
- Nine levels of sensitivity adjustment for varying loads or driving conditions
- Auto sleep mode prevents battery drain
- Plug-and-play install with vehicle-specific quick plug harness (sold separately)
- Operates 2-8 trailer brakes at a time (1-4 axles)
- Built-in reverse-polarity and short-circuit protection
- Compatible with low-voltage systems, PWM systems, ABS and cruise control
Notes:
- Limited lifetime warranty
- Includes mounting hardware
TRAILER BRAKE CONTROLLER WIRING KIT
- For tow vehicles not equipped with factory tow package wiring
- Compatible with 2, 4, 6 or 8-brake systems (1-4 axles)
- Designed for use with CURT quick plugs #51515 or #51516
- Brake controller and trailer connector are not included
Notes:
- Includes 10 gauge duplex wire, 10 gauge cross-linked wire, 30-amp circuit breaker, ring terminals, butt connectors and cable ties
DUAL-OUTPUT ELECTRICAL ADAPTER (ADDS 7-WAY RV BLADE TO 4-WAY FLAT)
- Adapts a 4-way flat socket to fit 4-way flat and 7-way RV blade trailer plugs
- 4-way flat output connects tail lights, brake lights and turn signals
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
- Dust covers included to keep connectors clean when not in use
- Slit loom keeps wires contained and well protected
- Metal bracket securely mounts wiring to the vehicle or trailer hitch
UNIVERSAL TRAILER BRAKE CONTROLLER HARNESS WITH PIGTAILS
- Splices into a vehicle for a quick plug brake controller connection
- Compatible with any CURT brake control
- Wire colors match standard brake controller harnesses
- Includes 24" of 12 gauge wire for flexible installation
- Slit-loom sleeve keeps wires contained and protected
