This kit fits the following vehicle: 10 - 16 Hyundai Genesis Coupe

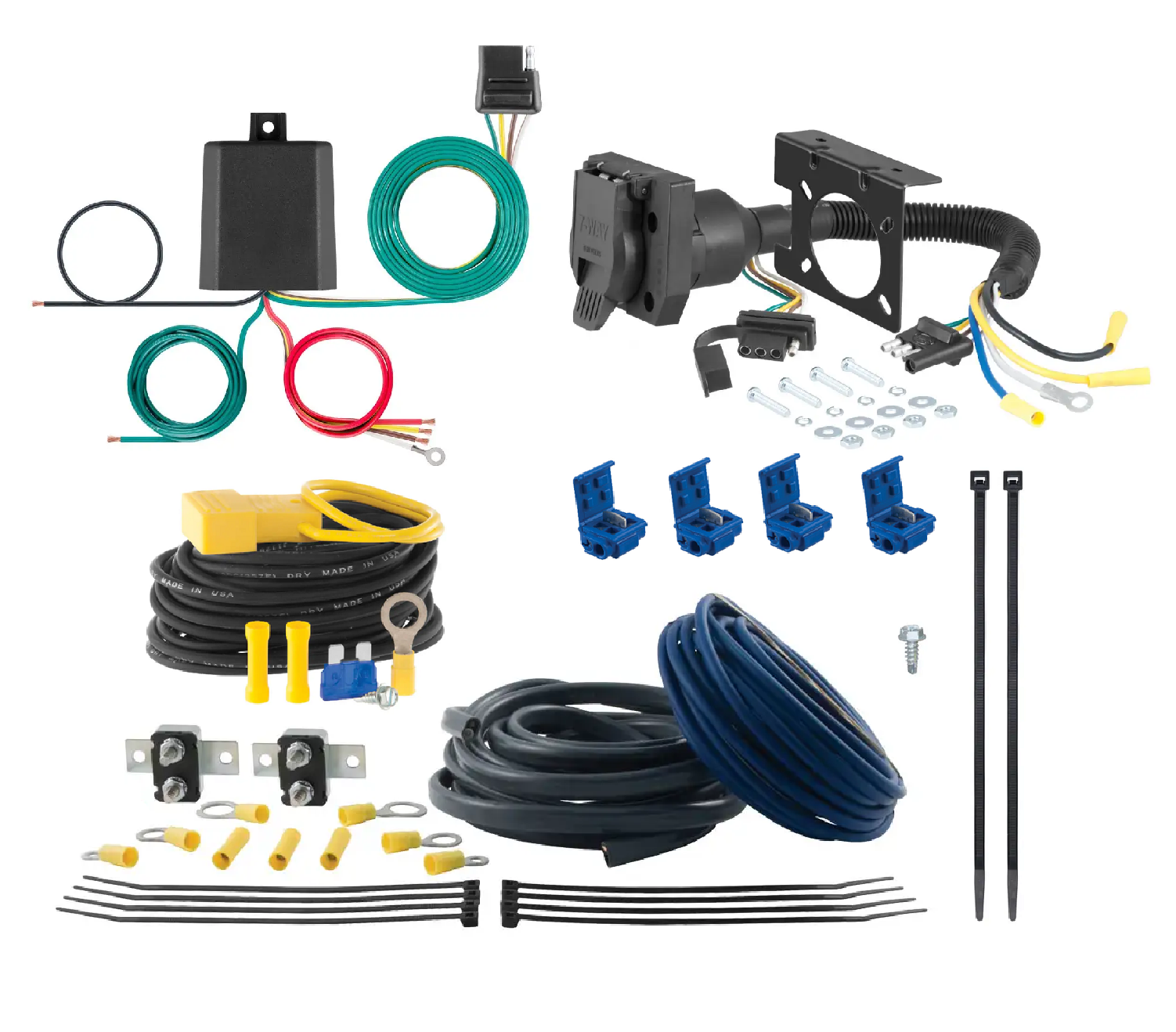

This kit includes everything pictured:
- CURT Custom Fit Plug and Play 4 Way Connector
- CURT Trailer Brake Controller Wiring Kit
- 2x CURT 30-Amp Universal Circuit Breaker
- CURT Dual-Output Electrical Adapter (Adds 7-Way RV Blade to 4-Way Flat)
- Mounting Hardware
- Installation Instructions, Wiring Diagrams (Where applicable)
- Fuses
"

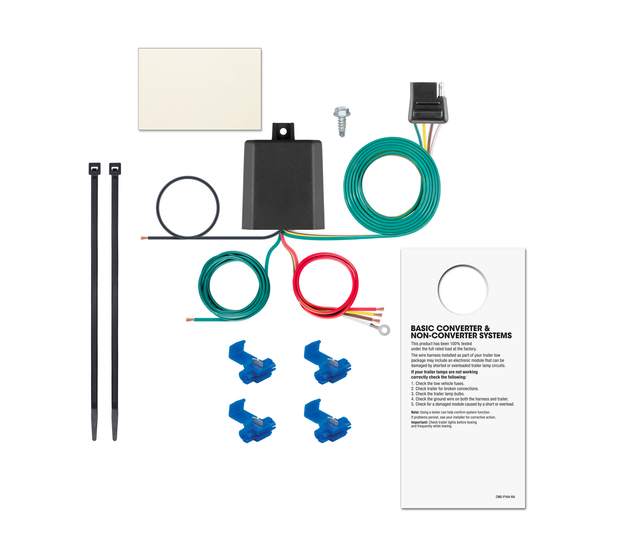

Curt Custom 4 Flat ConnectorCURT custom wiring is the best option for equipping your vehicle with a trailer wiring connector. It offers a vehicle-specific solution with no need for cutting, splicing or soldering. However, if custom wiring is not available for your specific vehicle, CURT offers the taillight converter a universal trailer wiring option. This CURT taillight converter provides a standard 4-way flat connection for hooking up your trailer lights to your vehicle. It features highly durable construction, able to withstand harsh elements, road salt and vibrations. The converter is built with a potted enclosure in which the electrical components are encased in a solid compound that seals them off from moisture and impacts. Even when mounted outside, underneath the vehicle, it provides long-lasting dependability. This taillight converter is compatible with a wide variety of vehicles, including models from Dodge, Ford, GM, Honda, Kia, Mazda, Nissan, Subaru, Toyota, Volkswagen, Volvo and many others (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). The converter is designed to convert a 3-wire vehicle system to function with a 2-wire trailer system. The converter features color-coded wires and a wiring guide for easier installation, and it comes with snap locks for a secure connection (a powered taillight converter wiring kit, such as the CURT #55151, is also required for installation). Most CURT taillight converters are constructed with surface-mount technology or SMT. This type of circuitry features smaller electrical components that mount directly to the face of the circuit board, resulting in reduced heat generation, enhanced performance under vibration conditions, maximum light intensity and maximum operating life. CURT converters are also fully tested, both optically and load-tested, to ensure reliable performance.
- Converts 3-wire system to 2-wire trailer light wiring
- Potted enclosure significantly increases water and vibration resistance
- 4-way flat output connects tail lights, brake lights and turn signals
- Constructed with SMT circuitry for better performance and durability
- Improved overvolt, electrostatic discharge (ESD) and short-circuit protection
- Color-coded wires with wiring guide for easier installation
- Snap locks included for fast, secure splicing
- Dust cover included to keep connector clean when not in use
Specifications
| Side Application Type Description | Blank |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Circuit-Protected | Yes |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
Dual-Output Electrical Adapter (ADDS 7-WAY RV BLADE TO 4-WAY FLAT)- Adapts a 4-way flat socket to fit 4-way flat and 7-way RV blade trailer plugs
- 4-way flat output connects tail lights, brake lights and turn signals
- 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
- Dust covers included to keep connectors clean when not in use
- Slit loom keeps wires contained and well protected
- Metal bracket securely mounts wiring to the vehicle or trailer hitch
CURT Trailer Brake Controller Wiring Kit
It takes a lot of power to stop a moving trailer, especially when that trailer is hauling livestock, construction materials, industrial equipment or other heavy-duty cargo. Play it safe when you tow and give your trailer brakes the control they need with a CURT trailer brake controller and brake controller harness. This brake controller wiring kit is designed for vehicles that do not have an included towing prep package. It includes cables, ring terminals, cable ties and a circuit breaker to splice into your vehicle's wiring system and allow installation of a CURT trailer brake controller. This wiring kit is compatible with systems with up to eight brakes.
- Trailer Brake Controller Wiring Kit
- For tow vehicles not equipped with factory tow package wiring
- Compatible with 2, 4, 6 or 8-brake systems (1-4 axles)
- Designed for use with CURT quick plugs #51515 or #51516
- Brake controller and trailer connector are not included
