This wiring is for 17 - 24 HONDA Ridgeline

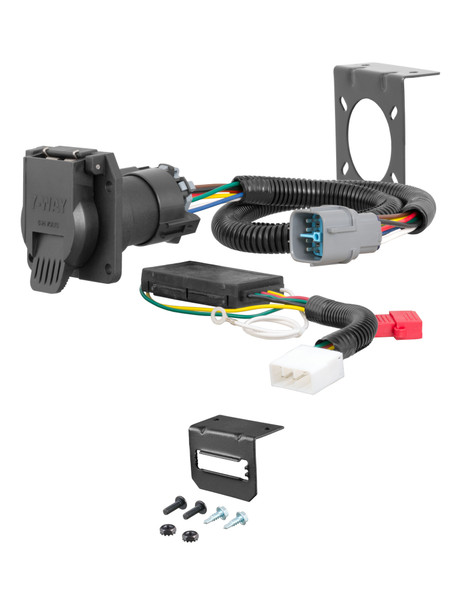

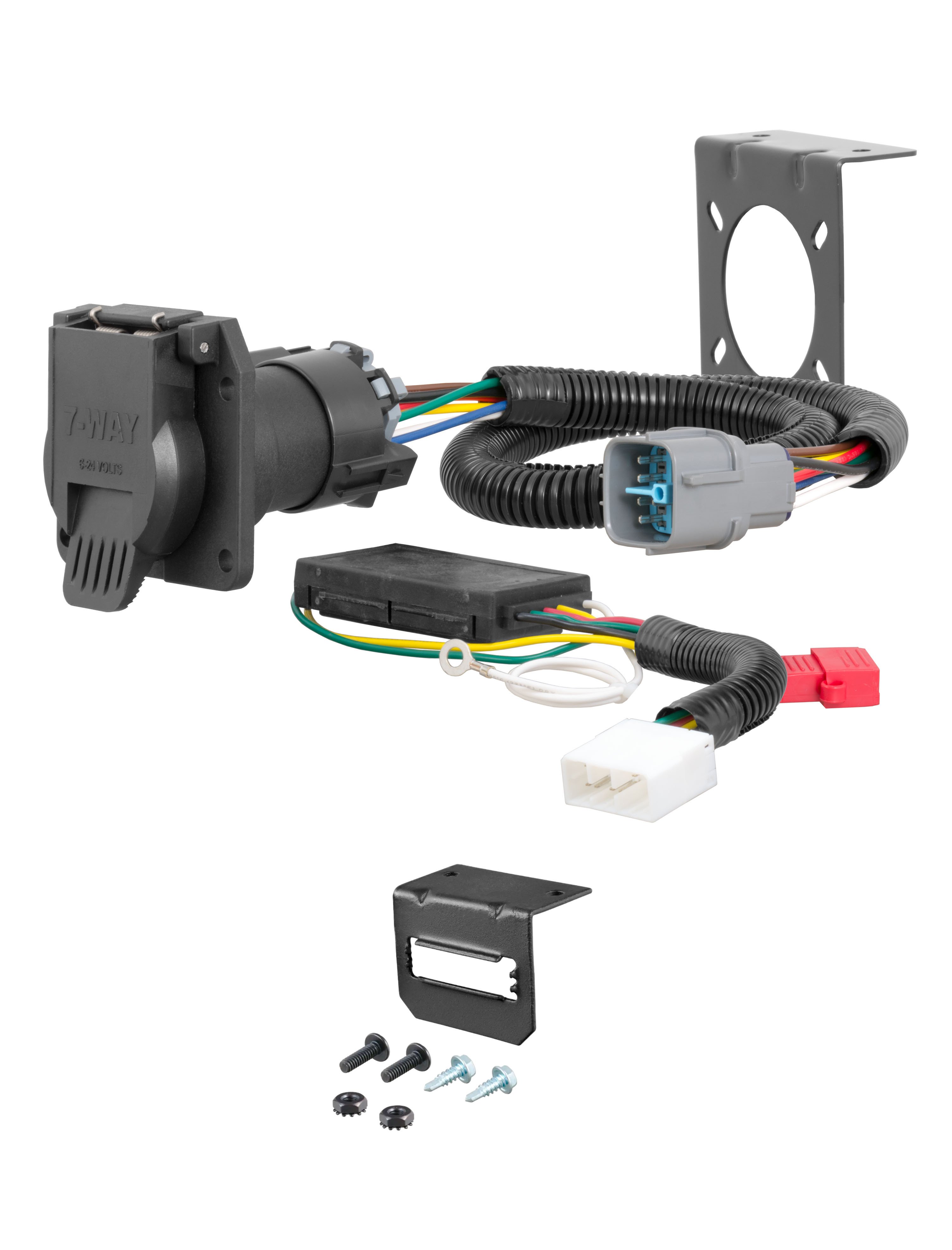

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Honda Pilot and Ridgeline (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.

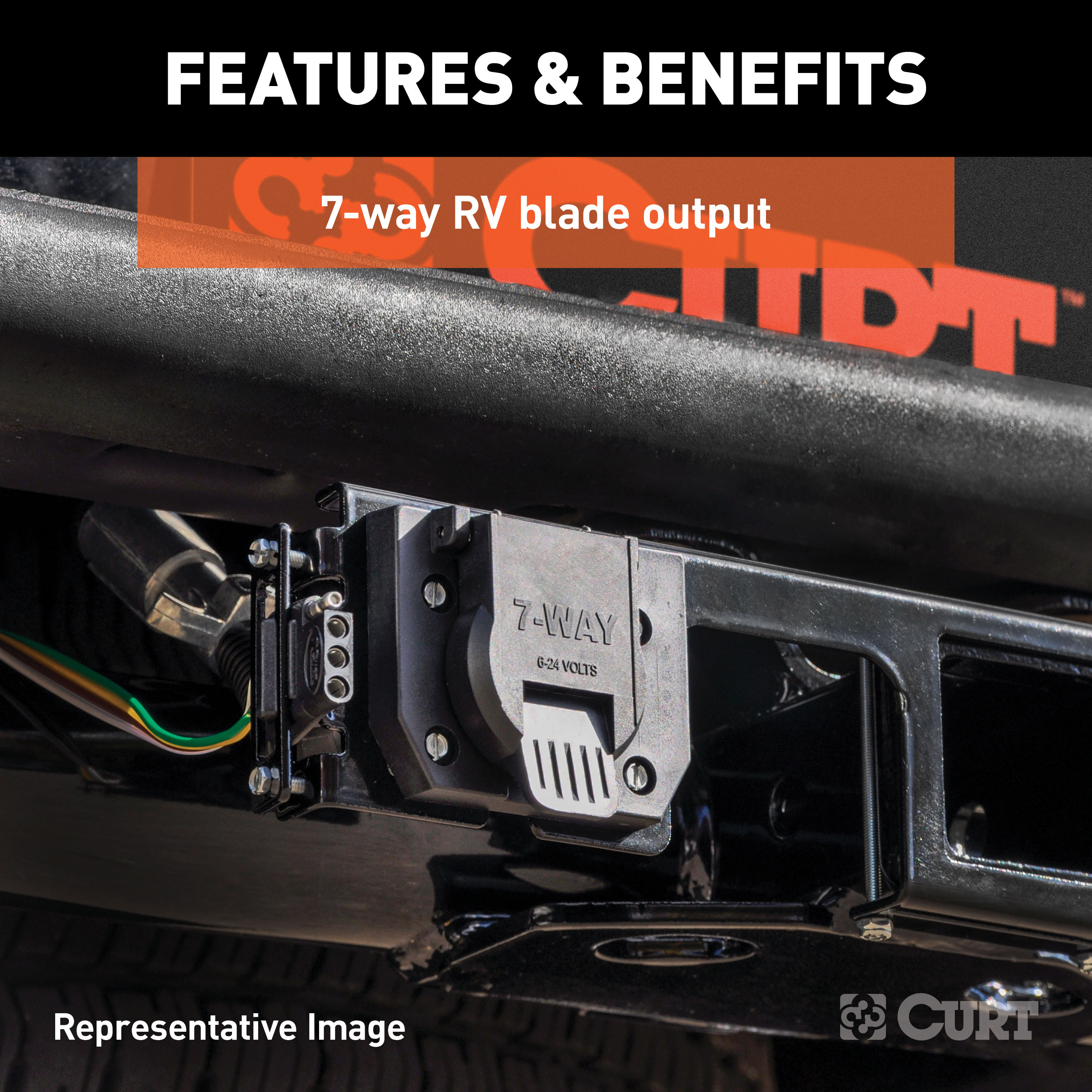

• Plugs into vehicle tail light assembly to provide a 7-way RV blade socket
• Simple plug-and-play design eliminates the need for cutting or splicing
• 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
• Equipped with tail light converter for vehicle-trailer compatibility
• Constructed with SMT circuitry for better performance and durability
• Spring-loaded dust cover keeps connector clean when not in use
• Slit loom keeps wires contained and well protected
• Backed by a limited one-year warranty

Specifications

Side Application Type Description	Blank
T-Connector Location	S5
Tail Light Circuits	6.0 Amps
Turn and Brake Circuits	3.0 Amps
Warranty	One-Year Limited Warranty
Battery-Powered	Yes
Converter Type	Circuit Protected and Powered
Electrical System Type	3W
Finish	N/A
Material	Blank
Mount Type Description	Blank

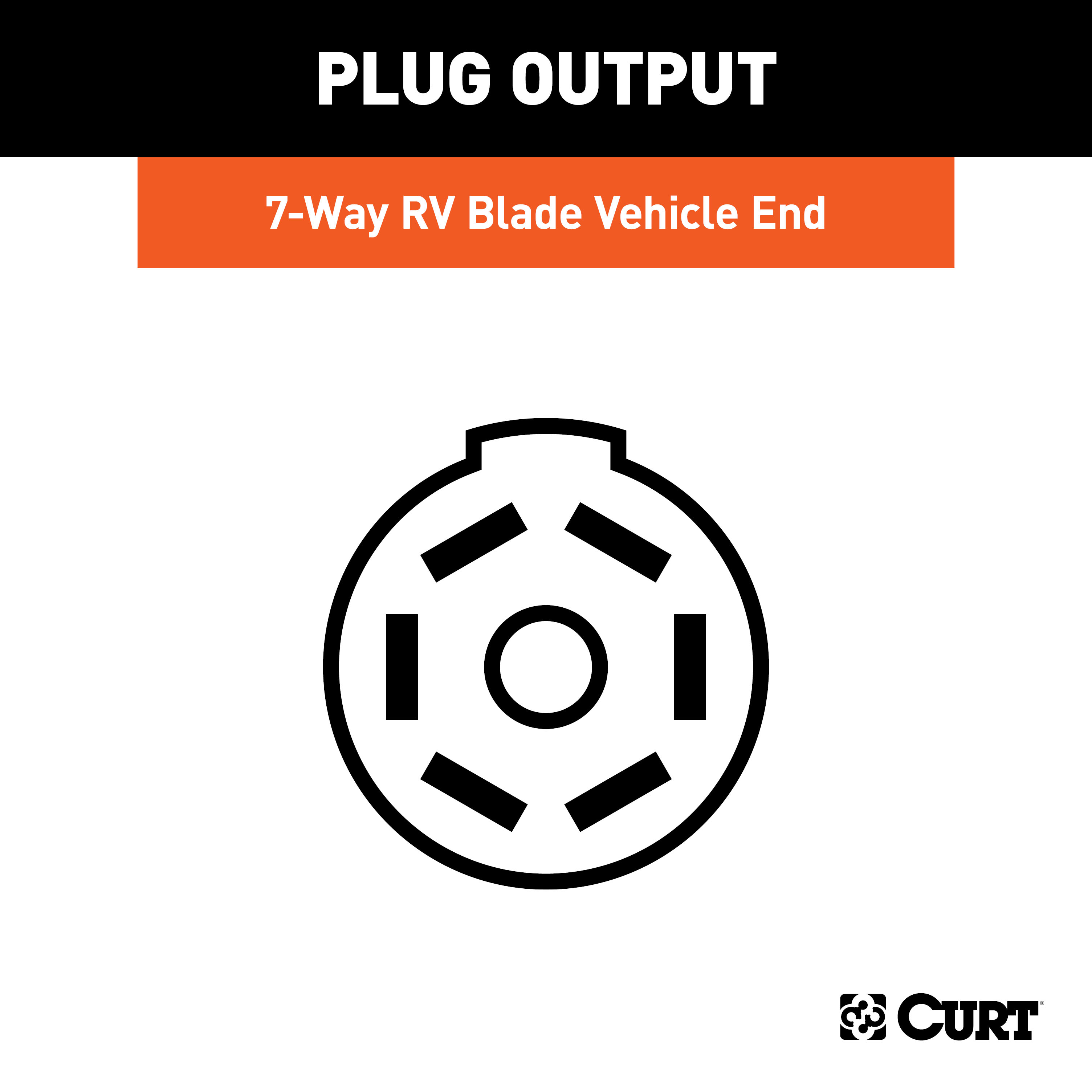

Output Type	7-Way RV Blade
