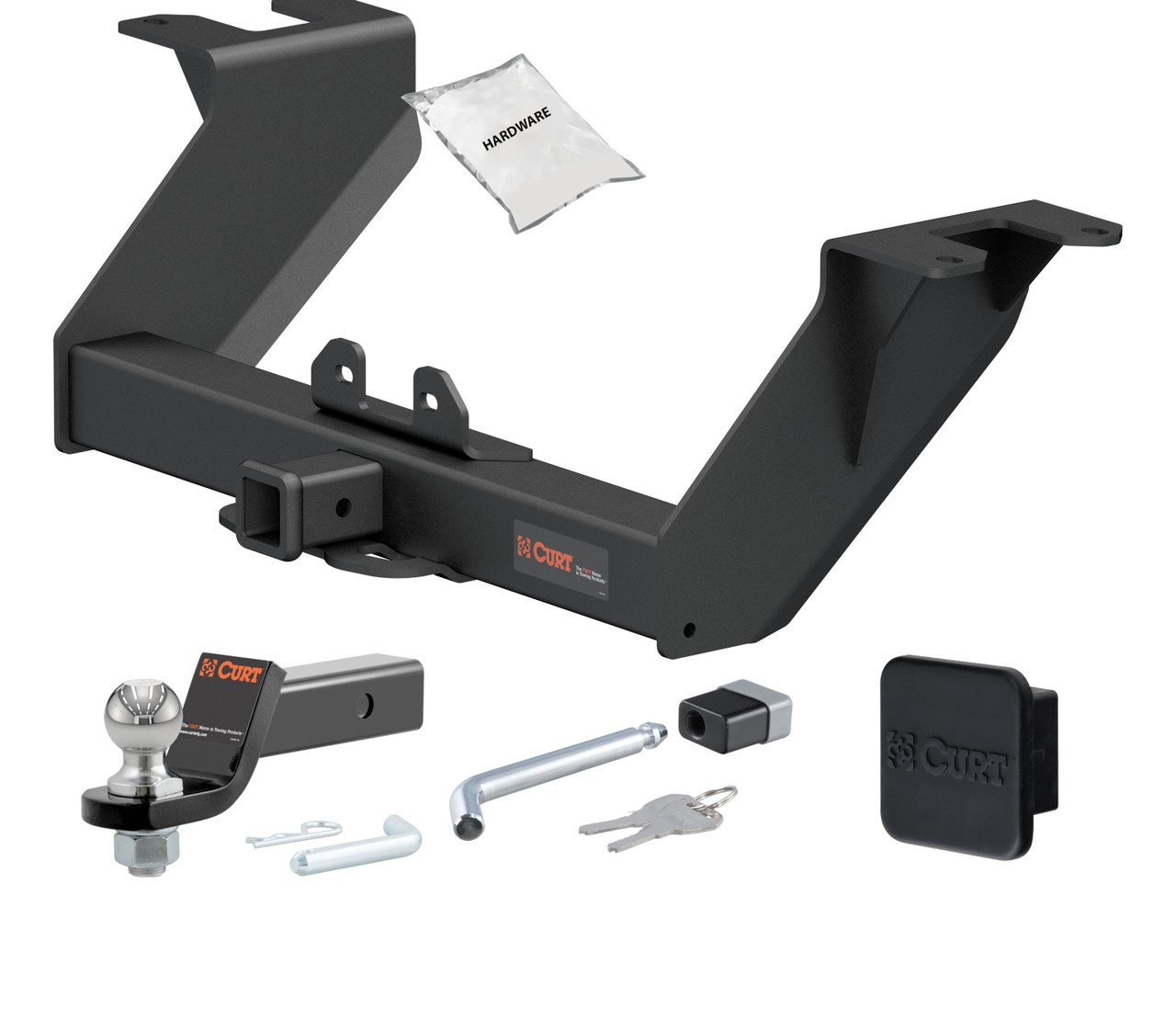

This kit Includes:

• Trailer Hitch
• Trailer Hitch Hardware
• Trailer Hitch Install Instructions
• Ball Mount w/ Ball
• Lock
• Rubber Hitch Cover

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,000 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevrolet Silverado 1500 or GMC Sierra 1500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,000 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.

• Rated to 16,000 lbs. gross trailer weight and 2,000 lbs. tongue weight
• Compatible with weight distribution hitch (17,000 lbs. WD / 2,000 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Constructed with a large, powerful main body
• Protected by a highly durable carbide powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Features wide safety chain openings for heavy-duty hooks
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

Specifications

Finish	CARBIDE BLACK POWDER COAT
Main Body Shape	Square
Material	Carbon Steel
Mount Type Description	Not Applicable
Receiver Tube Size	2 IN
Side Application Type Description	Not Applicable
Tongue Weight (TW)	2,000 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity (WC)	16,000 LB
Weight Distribution (WD)	17,000 LB
Weight Distribution Tongue Weight (WDTW)	2,000 LB

Ball Mount

CURT towing starter kits are the all-in-one accessory package to accompany your trailer hitch, equipping you with the necessary components to hitch up and hit the road. Each towing starter kit includes a ball mount and a hitch pin or hitch lock, eliminating the need to purchase these items separately and removing the stress of needing to find components of matching size. This CURT towing starter kit features a class 2 ball mount #45521 with a 1-1/4" x 1-1/4" shank to fit a class 1 or 2 trailer hitch. CURT class 2 ball mounts are CNC-formed and robotically welded for clean, accurate weld lines. This class 2 features a powder coat finish and comes with a pre-torqued, chrome-plated 2" trailer ball. It offers a 3-1/4" drop, a gross trailer weight capacity of 3,500 lbs. and a tongue weight rating of 350 lbs. Also included in this towing starter kit is a CURT hitch pin & clip #21403. This hitch pin features a 1/2" diameter and is constructed from solid steel to ensure reliable strength. It also comes with a zinc finish and a grooved end that allows the clip to be inserted at any angle. All CURT 1/2" pins come with a 105-degree bend, making them easier to handle and operate when mounting your ball mount, and they will fit any CURT ball mount or hitch-mounted accessory with a 1-1/4" x 1-1/4" shank. For the new hitch owner and towing veteran alike, a CURT towing starter kit is the perfect accessory to Bring It.

• Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
• Fits trailer hitches with a 1-1/4" x 1-1/4" receiver tube opening
• Factory-torqued trailer ball accepts 2" couplers
• USA-made ball mount is CNC-formed and robotically welded for a perfect fit
• 2-5/8" rise or 3-1/4" drop for precise trailer leveling
• 1/2" hitch pin fits any 1-1/4" x 1-1/4" receiver tube
• Grooved pin allows clip attachment at any angle
• Ball mount protected by a durable powder coat finish
• Trailer ball features a polished chrome-plated finish
• Limited lifetime warranty (one-year finish, one-year parts)

Specifications

Side Application Type Description	Blank
Tongue Weight (TW)	350 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Drop	3-1/4 IN
Finish	GLOSS BLACK POWDER COAT
Gross Trailer Weight (GTW)	3,500 LB
Material	Blank
Mount Type Description	Blank
