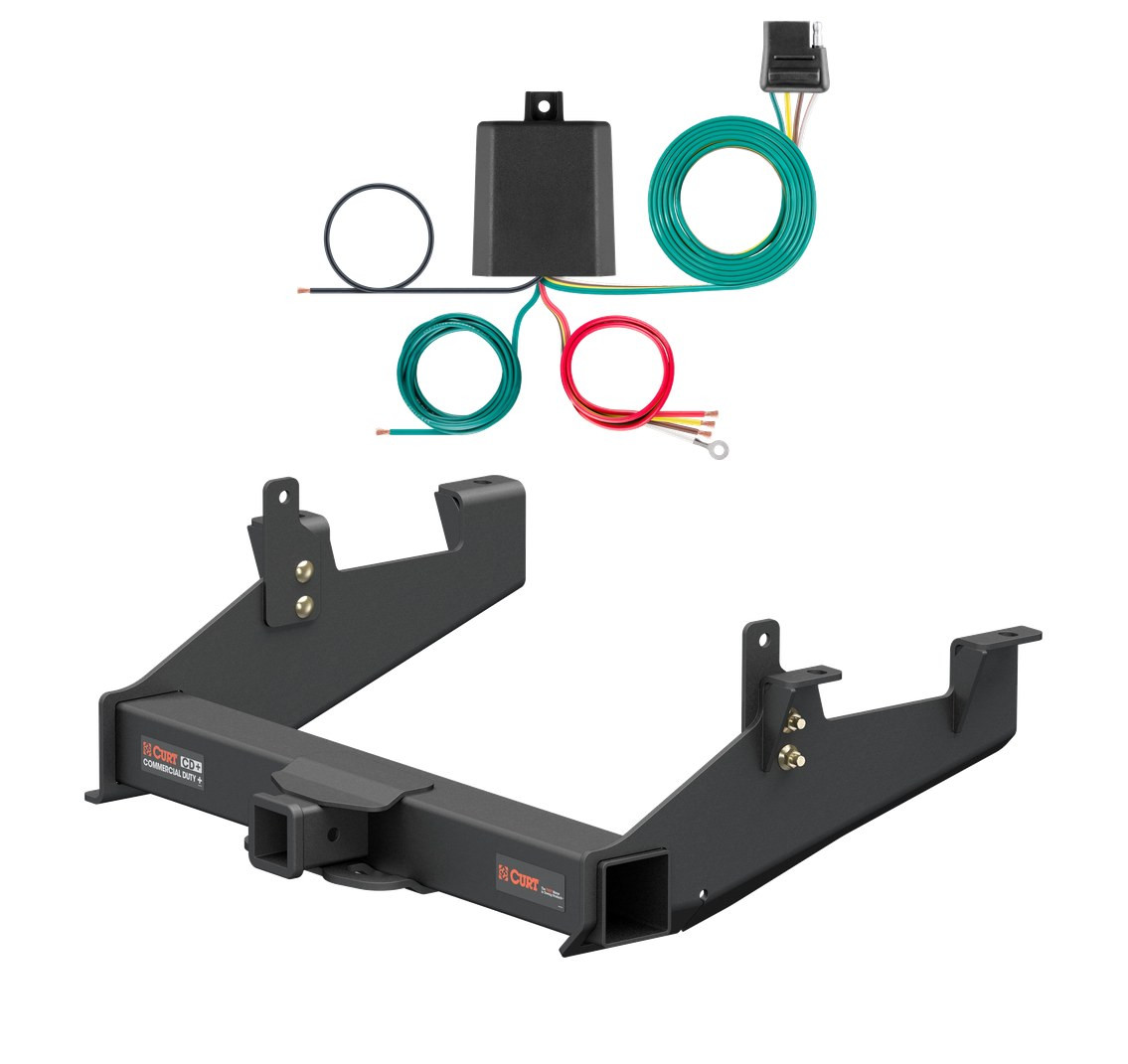

This kit includes:
- Trailer Hitch
- Trailer Hitch Mounting Hardware
- Installation Instructions
- Trailer Wiring
Vehicle Compatibility:
This custom kit fits the following vehicles:
- 20 - 24 GMC Sierra 3500 HD 8' bed, excluding factory receiver, Tommy Gate lift or cab & chassis
All Hardware and Installation Instructions Included!

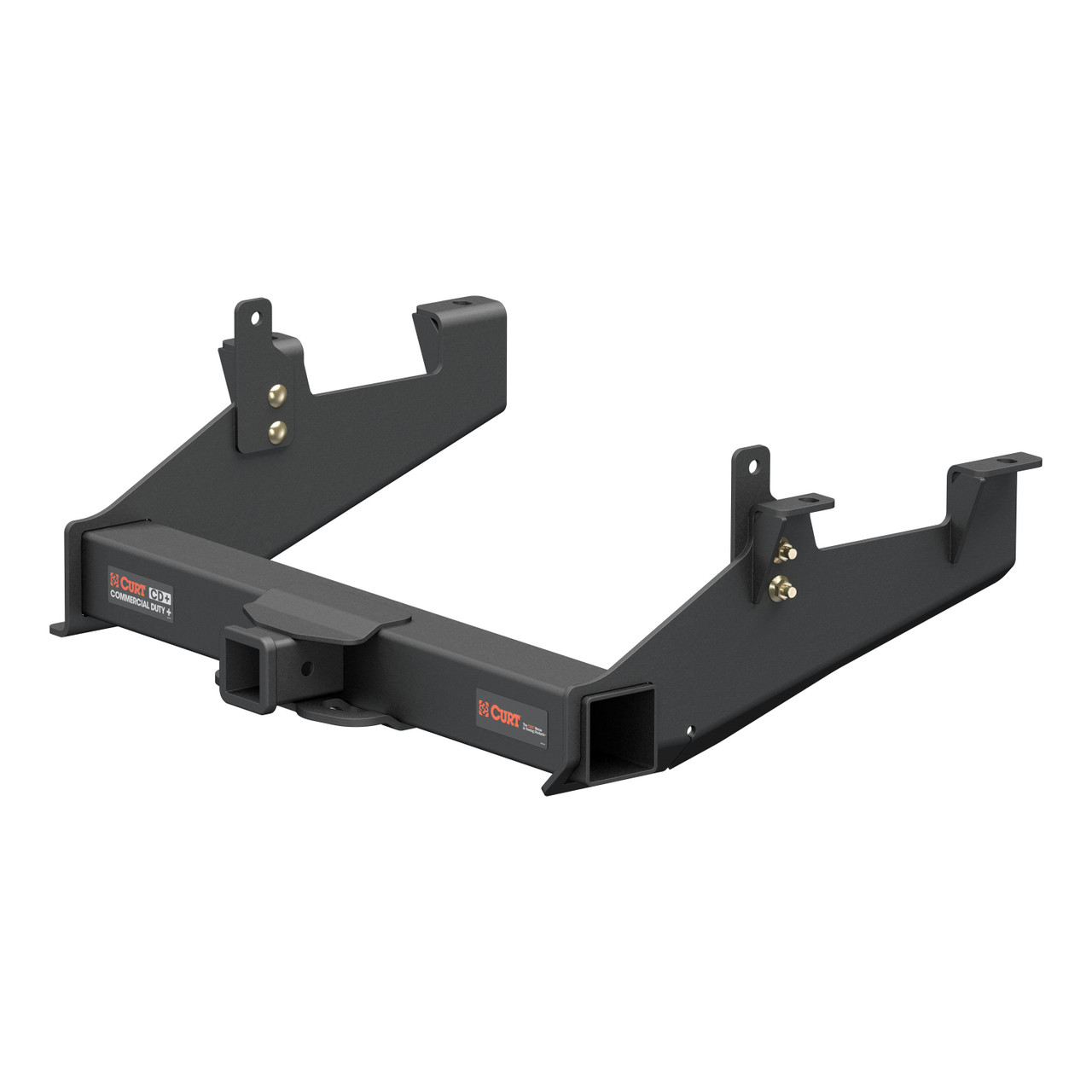

CURT Class 5, 2-1/2" Trailer Tow Hitch
In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD (will not fit with factory receiver; to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

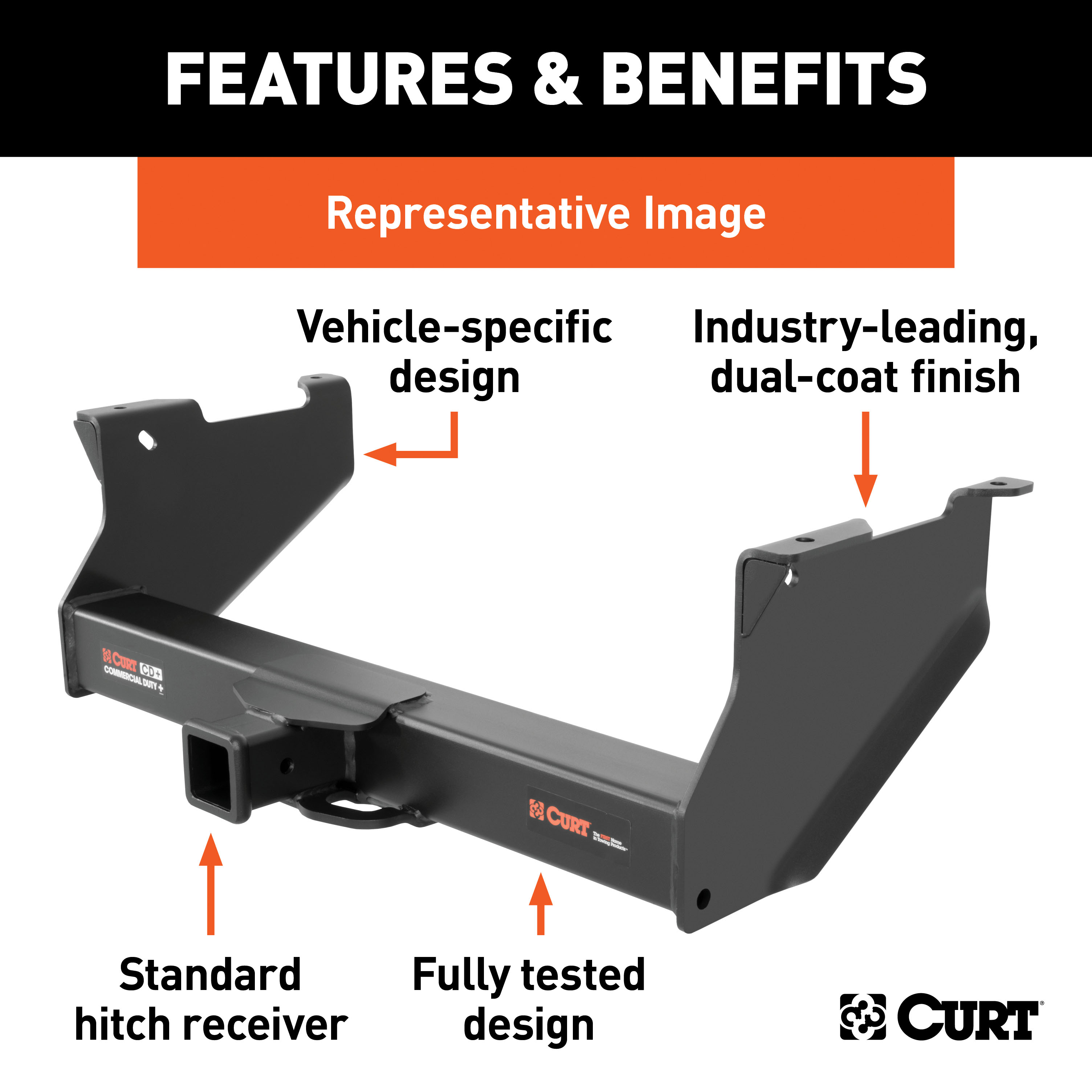

Features & Benefits
- Rated to 20,000 lbs. gross trailer weight and 2,700 lbs. tongue weight
- Compatible with weight distribution hitch (20,000 lbs. WD / 2,700 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Constructed with a large, powerful main body
- Protected by a highly durable carbide powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Features wide safety chain openings for heavy-duty hooks
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Trailer Wiring
CURT custom wiring is the best option for equipping your vehicle with a trailer wiring connector. It offers a vehicle-specific solution with no need for cutting, splicing or soldering. However, if custom wiring is not available for your specific vehicle, CURT offers the taillight converter -- a universal trailer wiring option. This CURT taillight converter provides a standard 4-way flat connection for hooking up your trailer lights to your vehicle. It features highly durable construction, able to withstand harsh elements, road salt and vibrations. The converter is built with a potted enclosure in which the electrical components are encased in a solid compound that seals them off from moisture and impacts. Even when mounted outside, underneath the vehicle, it provides long-lasting dependability. This taillight converter is compatible with a wide variety of vehicles, including models from Dodge, Ford, GM, Honda, Kia, Mazda, Nissan, Subaru, Toyota, Volkswagen, Volvo and many others (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). The converter is designed to convert a 3-wire vehicle system to function with a 2-wire trailer system. The converter features color-coded wires and a wiring guide for easier installation, and it comes with snap locks for a secure connection (a powered taillight converter wiring kit, such as the CURT #55151, is also required for installation). Most CURT taillight converters are constructed with surface-mount technology or SMT. This type of circuitry features smaller electrical components that mount directly to the face of the circuit board, resulting in reduced heat generation, enhanced performance under vibration conditions, maximum light intensity and maximum operating life. CURT converters are also fully tested, both optically and load-tested, to ensure reliable performance.

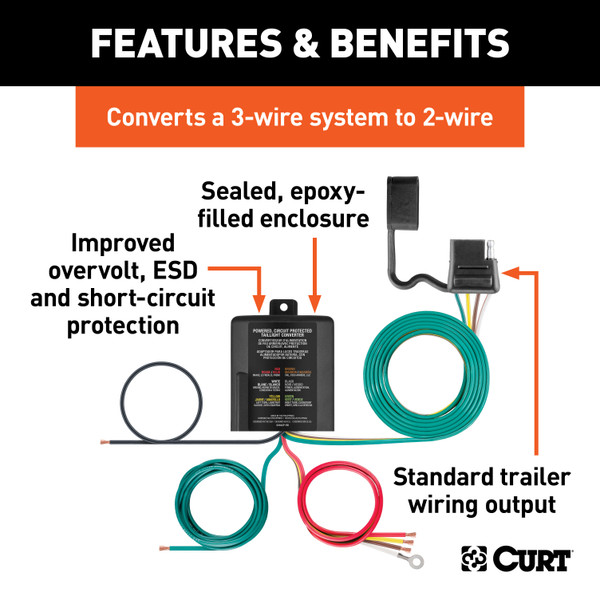

Features & Benefits
- Converts 3-wire system to 2-wire trailer light wiring
- Potted enclosure significantly increases water and vibration resistance
- 4-way flat output connects tail lights, brake lights and turn signals
- Constructed with SMT circuitry for better performance and durability
- Improved overvolt, electrostatic discharge (ESD) and short-circuit protection
- Color-coded wires with wiring guide for easier installation
- Snap locks included for fast, secure splicing
- Dust cover included to keep connector clean when not in use
Installation Notes:
- Main hitch body exposed
- No drilling required
For more information please review the installation instructions: Click Here to view
