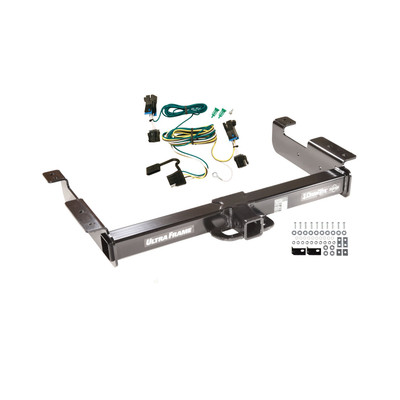

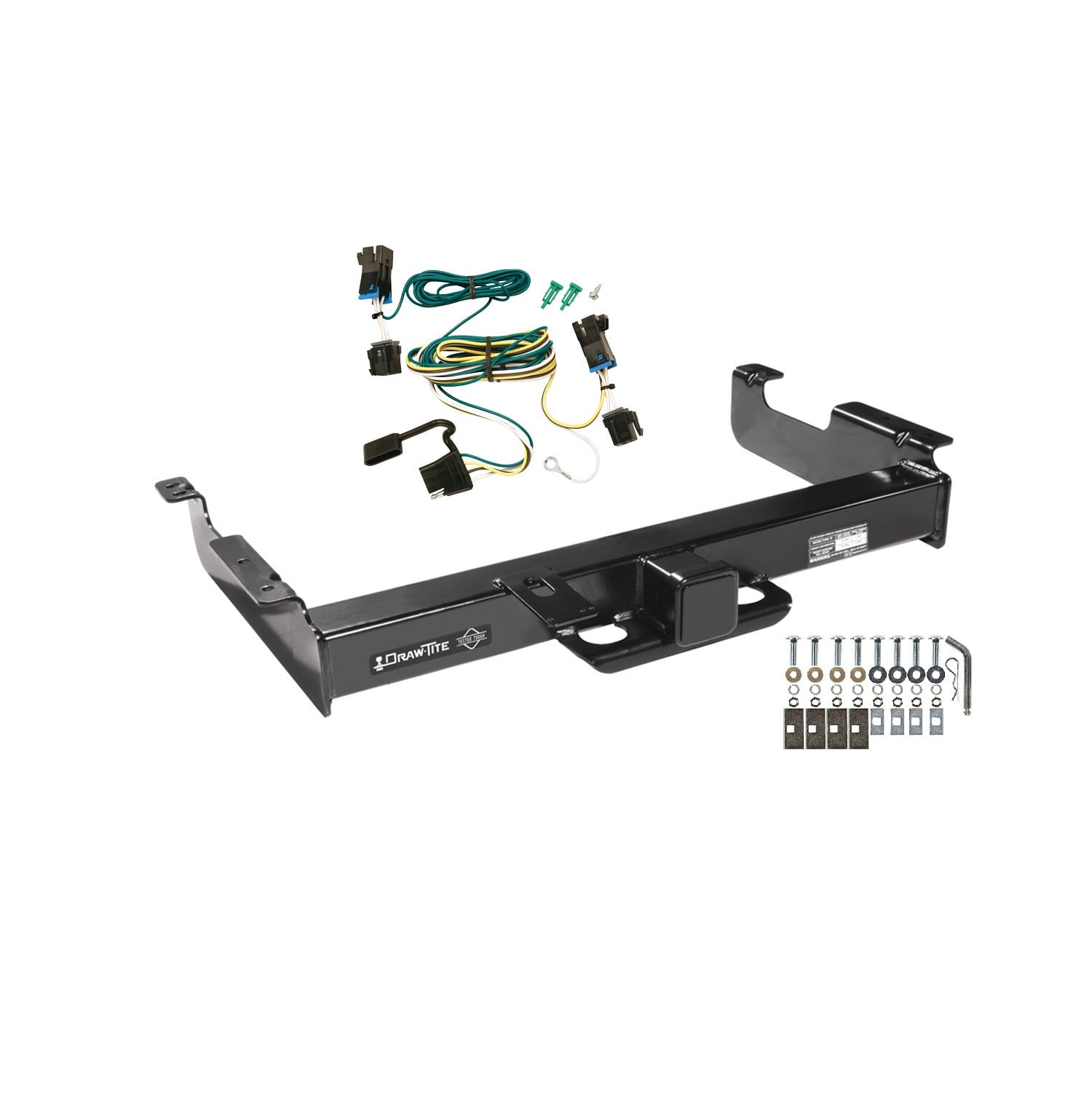

This kit fits: 2004-2018 Chevrolet Express 3500 DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These heavy-duty hitches are custom-fit by DRAW-TITE?s expert engineers and designers, with computer-aided designs to ensure a superior fit for your specific make and model year vehicle. DRAW-TITE Class 5 receiver hitches are rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 13,000 lbs. weight distribution (WD) and 1,300 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. DRAW-TITE trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards.
These durable custom hitches are manufactured for 1996-2014 Chevrolet Express 1500, 1996-2023 Chevrolet Express 2500, 1996-2023 Chevrolet Express 3500, 1996-2014 GMC Savana 1500, 1996-2023 GMC Savana 2500, 1996-2023 GMC Savana 3500 and attach to your vehicle?s frame with strong, secure heavy-duty side brackets. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. DRAW-TITE Class 5 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a limited lifetime guarantee. So, whether you are headed out to the campground, the snowmobile trails, or off-roading, or you are hauling cargo to and from the job site, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
- CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional.

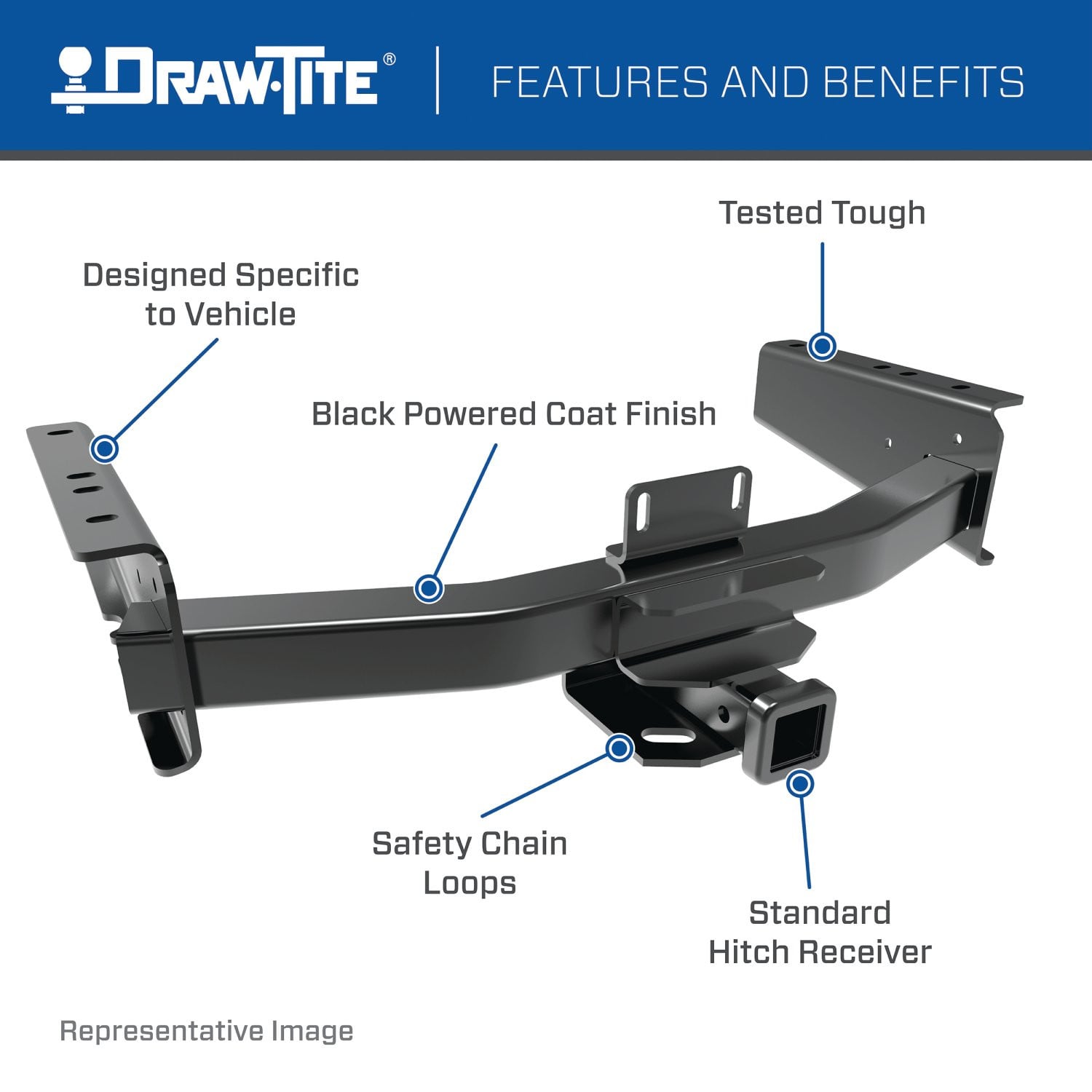

- STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion.
- TESTED: DRAW-TITE hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards.

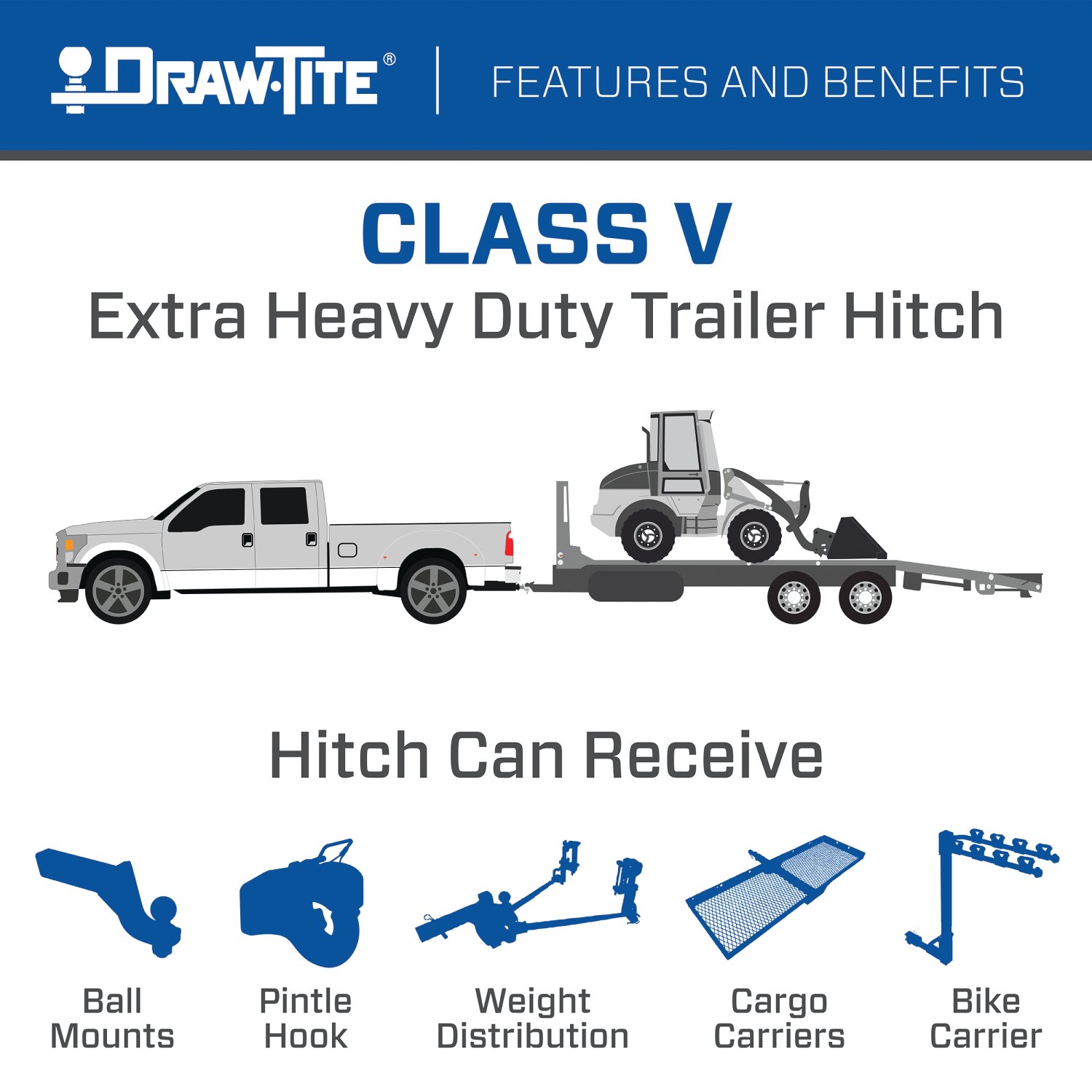

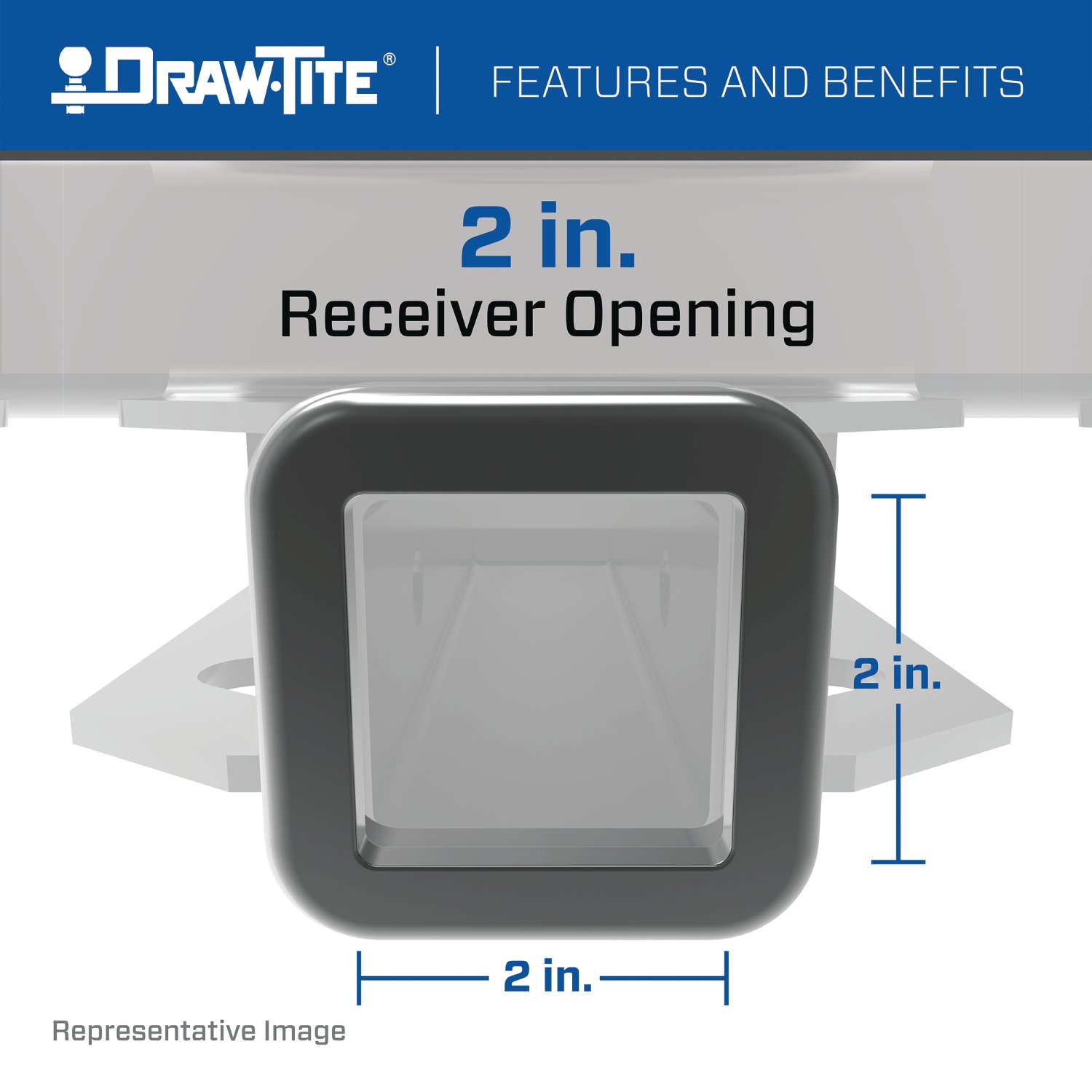

- CAPACITY: Rated for up to 10,000 lbs. GTW and up to 1,500 lbs. TW. Also suitable for use with Weight Distribution systems of up to 13,000 lbs. WD and 1,300 lbs. WDTW. The 2 inch square receiver can connect to a ball mount, bike rack, cargo carrier, and more!
- VERSATILE: This DRAW-TITE Class 5 hitch is designed to fit the following make and model year vehicle(s): 1996-2014 Chevrolet Express 1500, 1996-2023 Chevrolet Express 2500, 1996-2023 Chevrolet Express 3500, 1996-2014 GMC Savana 1500, 1996-2023 GMC Savana 2500, 1996-2023 GMC Savana 3500.
Connections are important, be it with your traveling companions or the truck and trailer in which you are riding. Thankfully, Tekonsha has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha?s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.

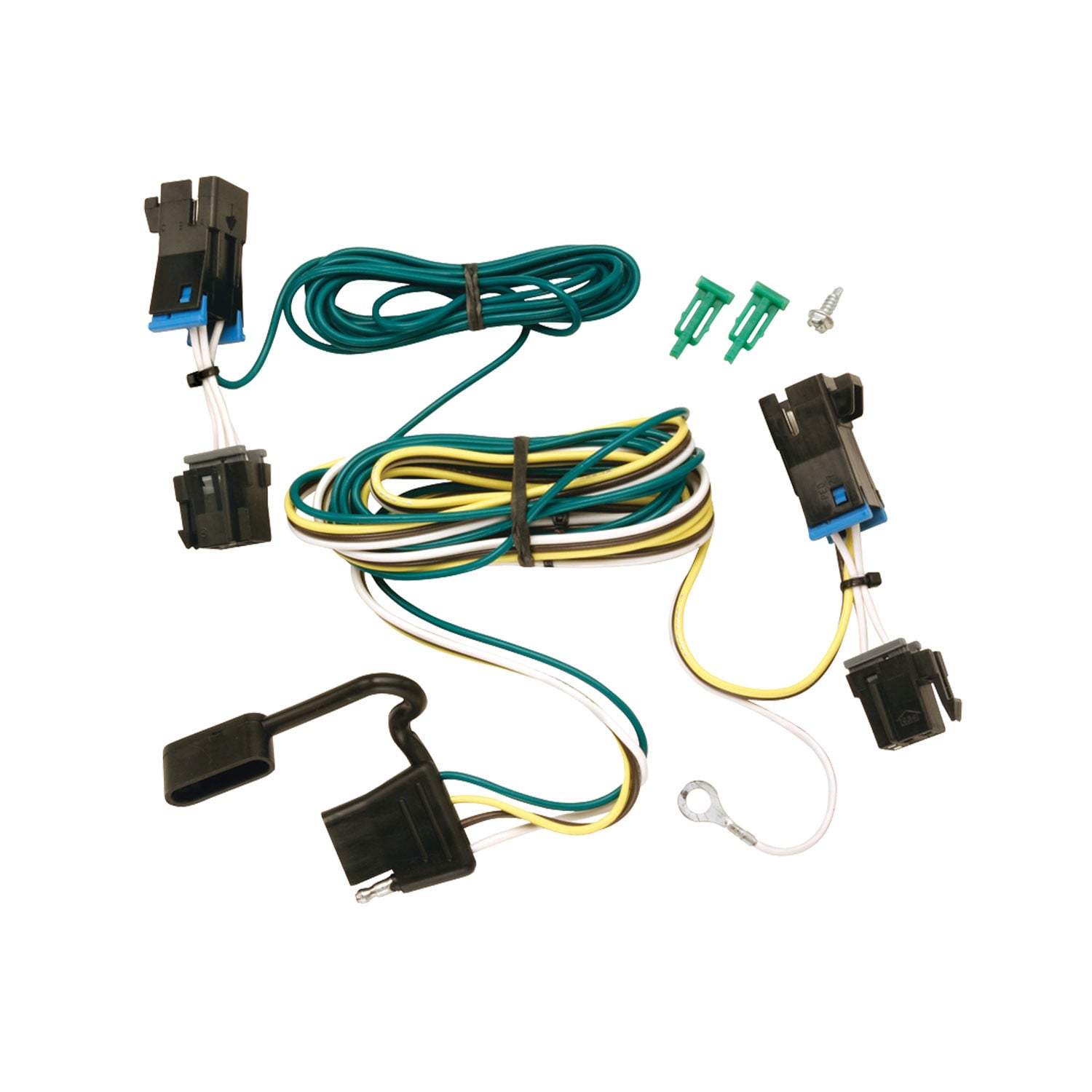

- 16 Gauge Bonded Wire With 4-Way Flat Plug Play
- Stop/Turn Circuit Capacity Of 7.5 Amps
- Solid, Weatherproof, One-Piece Construction
- No Cutting, Splicing, Or Taping Of Vehicle Wires
- Includes Converter Where Needed
