96 - 03 GMC Savana 1500 Curt 2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15320

Free Shipping
click to zoom in
Receiver Size:
2
__bundleid:
47046,117278,46971
96 - 03 GMC Savana 1500 Curt 2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15320
1,269 Write a Review
MSRP: $468.95
$305.07
In-Stock
(You save $163.88 )
SKU:
CHW-1483
Condition:
New

Estimated Delivery:

5 customers are viewing this product
contact image

have questions?

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Quality Products

  • Nationwide Delivery

    Free shipping on all order

96 - 03 GMC Savana 1500 Curt 2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15320

96 - 03 GMC Savana 1500 Curt 2", Class 5 Trailer Tow Hitch + 4-flat Wiring Kit 15320

MSRP: $468.95
$305.07
In-Stock
(You save $163.88 )

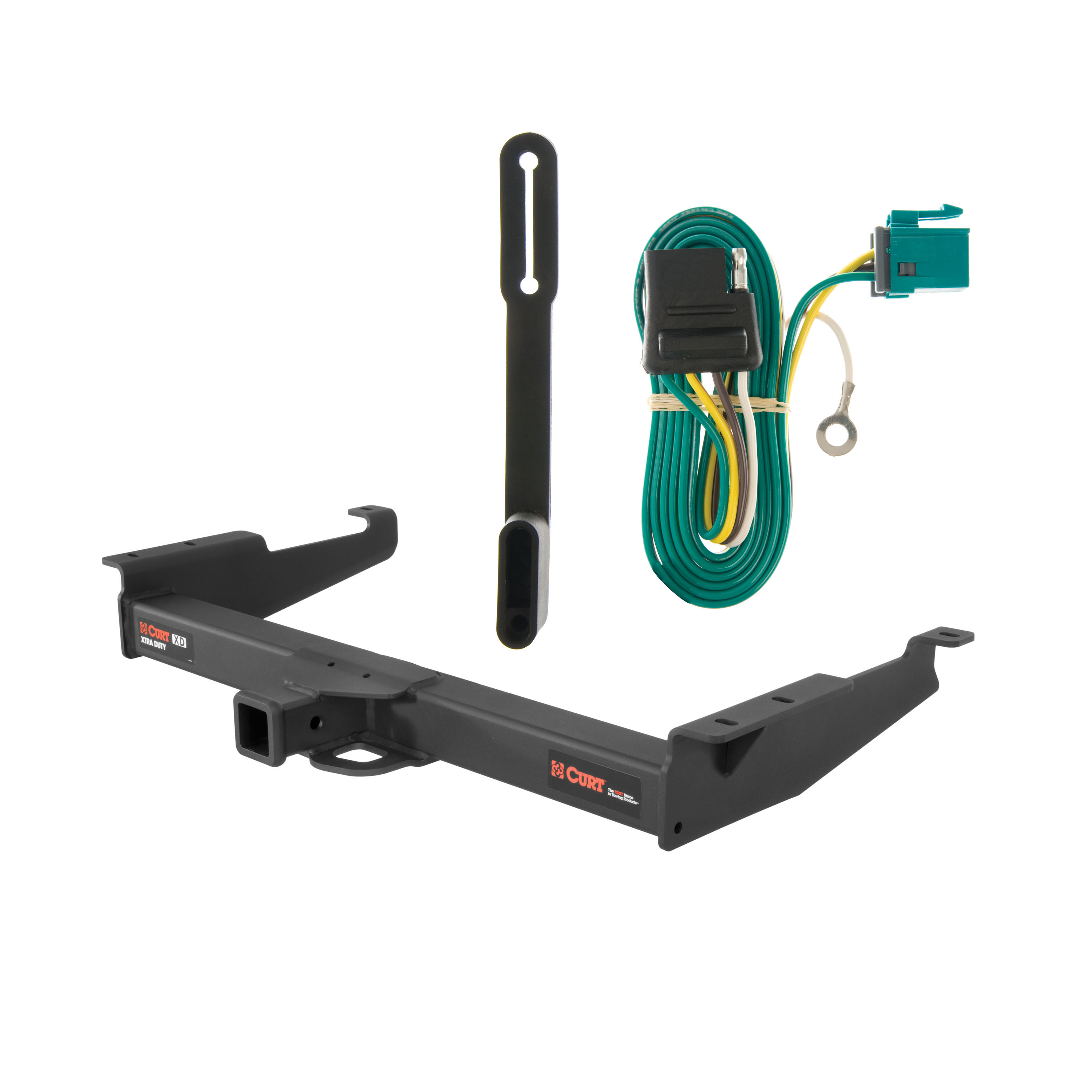

This kit includes:

  • Trailer Hitch
  • Trailer Hitch Mounting Hardware
  • Installation Instructions
  • Trailer Wiring

Vehicle Compatibility:

This custom kit fits the following vehicles:

  • 96 - 03 GMC Savana 1500

Installation Instructions:

Hitch Instructions

Wiring Instructions

All Hardware and Installation Instructions Included!

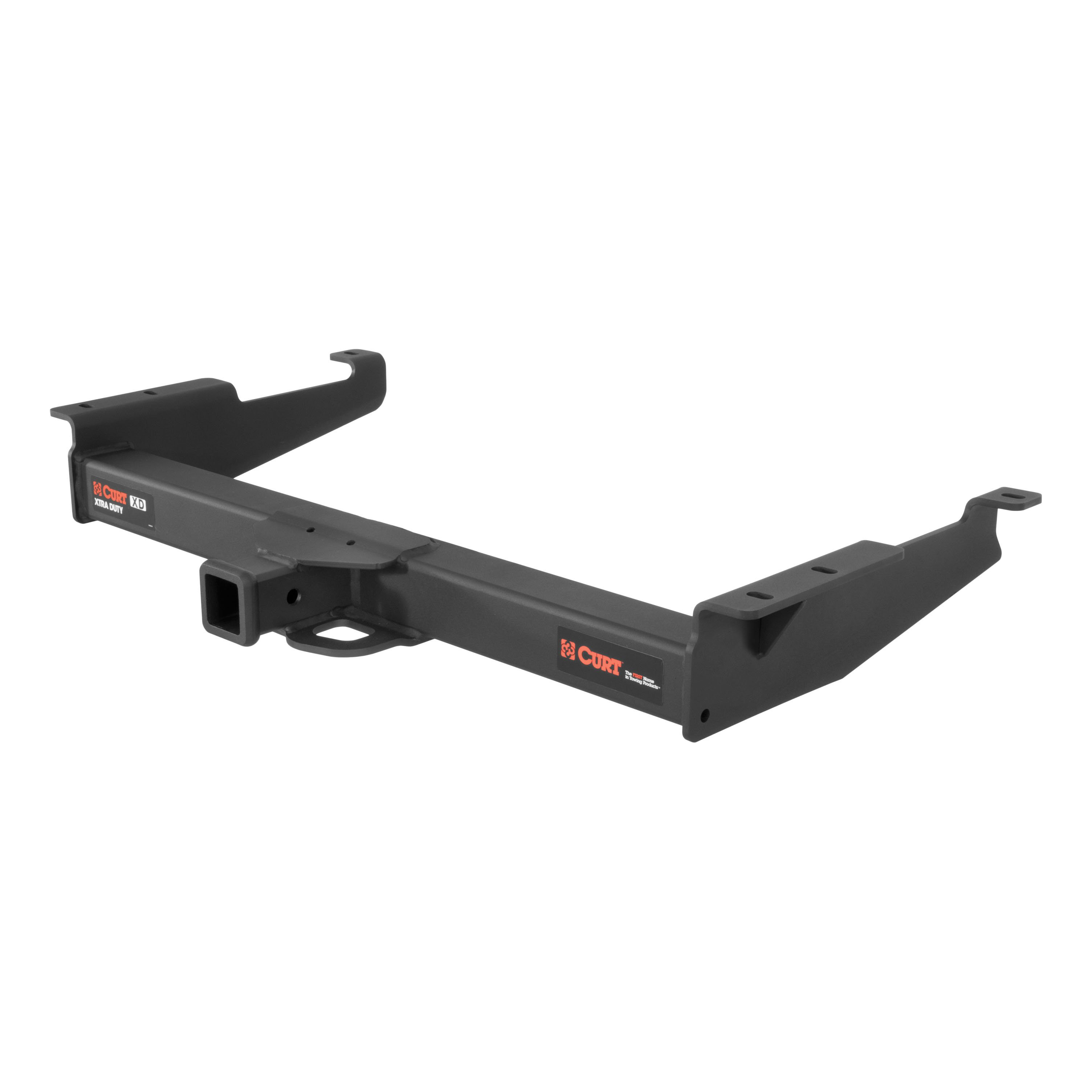

CURT Class 5, 2" Trailer Tow Hitch

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.

Features & Benefits

  • Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
  • Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a large, powerful main body
  • Protected by a highly durable carbide powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Features wide safety chain openings for heavy-duty hooks
  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

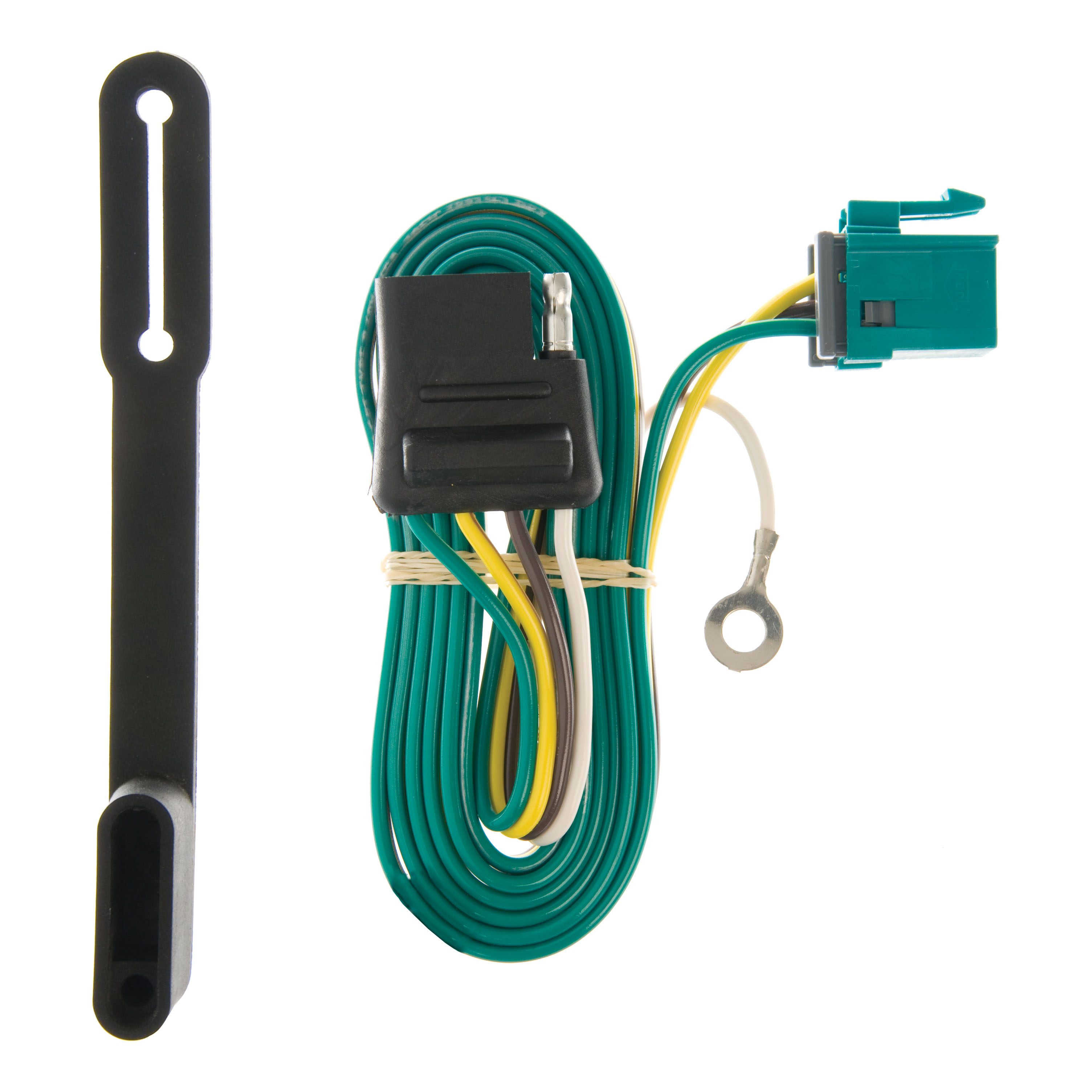

Trailer Wiring

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Chevy Express and GMC Savana 1500, 2500 and 3500 (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.

Features & Benefits

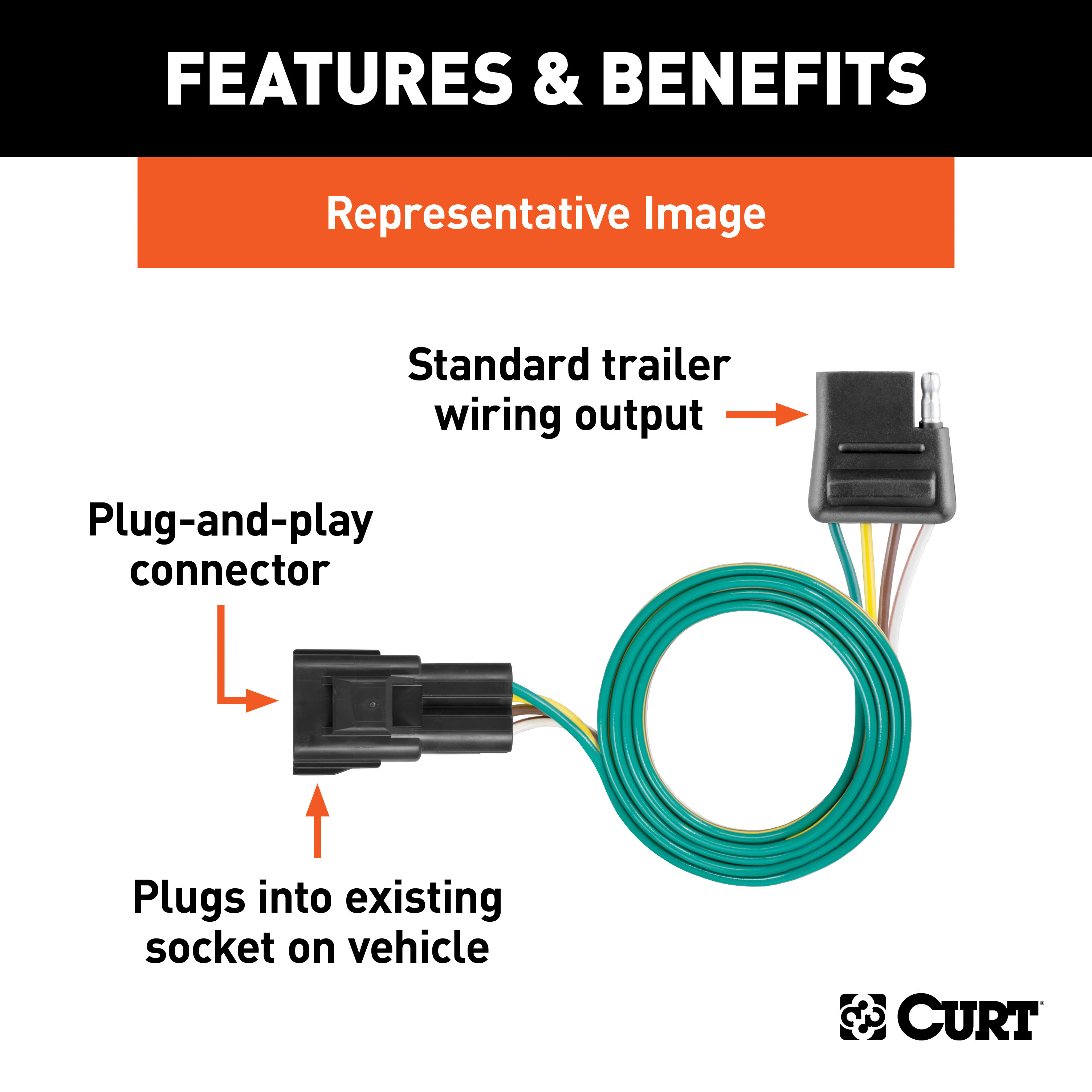

  • Plugs into existing OEM vehicle socket to provide a 4-way flat socket
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 4-way flat output connects tail lights, brake lights and turn signals
  • Dust cover included to keep connector clean when not in use
  • Backed by a limited one-year warranty

Installation Notes:

  • Main hitch body exposed
  • Carbide black finish
  • Will not fit vehicles with ground effects
  • No drilling required

For more information please review the installation instructions: Click Here to view
