96 - 03 GMC Savana 3500 Excluding cutaway models Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14090

Free Shipping
click to zoom in
Receiver Size:
2
__bundleid:
47046,117278,46971
96 - 03 GMC Savana 3500 Excluding cutaway models Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14090
1,269 Write a Review
MSRP: $390.95
$259.04
In-Stock
(You save $131.91 )
SKU:
CHW-1501
Condition:
New
QUICK SHIP Hurry, Order now!
47 customers are viewing this product
contact image

have questions?

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Quality Products

  • Nationwide Delivery

    Free shipping on all order

96 - 03 GMC Savana 3500 Excluding cutaway models Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14090

96 - 03 GMC Savana 3500 Excluding cutaway models Curt 2", Class 4 Trailer Tow Hitch + 4-flat Wiring Kit 14090

MSRP: $390.95
$259.04
In-Stock
(You save $131.91 )

This kit includes:

  • Trailer Hitch
  • Trailer Hitch Mounting Hardware
  • Installation Instructions
  • Trailer Wiring

Vehicle Compatibility:

This custom kit fits the following vehicles:

  • 96 - 03 GMC Savana 3500 Excluding cutaway models

Installation Instructions:

Hitch Instructions

Wiring Instructions

All Hardware and Installation Instructions Included!

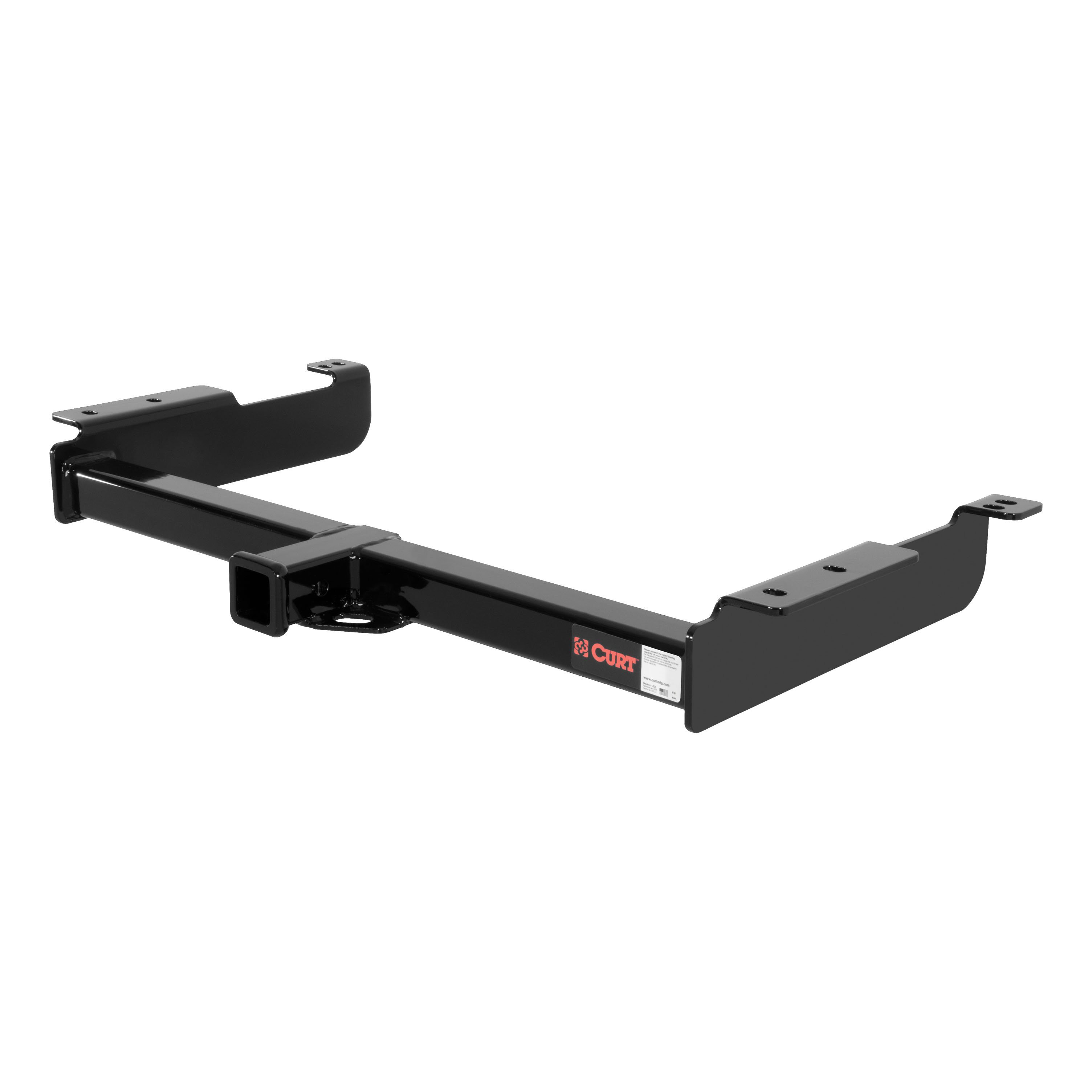

CURT Class 4, 2" Trailer Tow Hitch

Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.

Features & Benefits

  • Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
  • Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

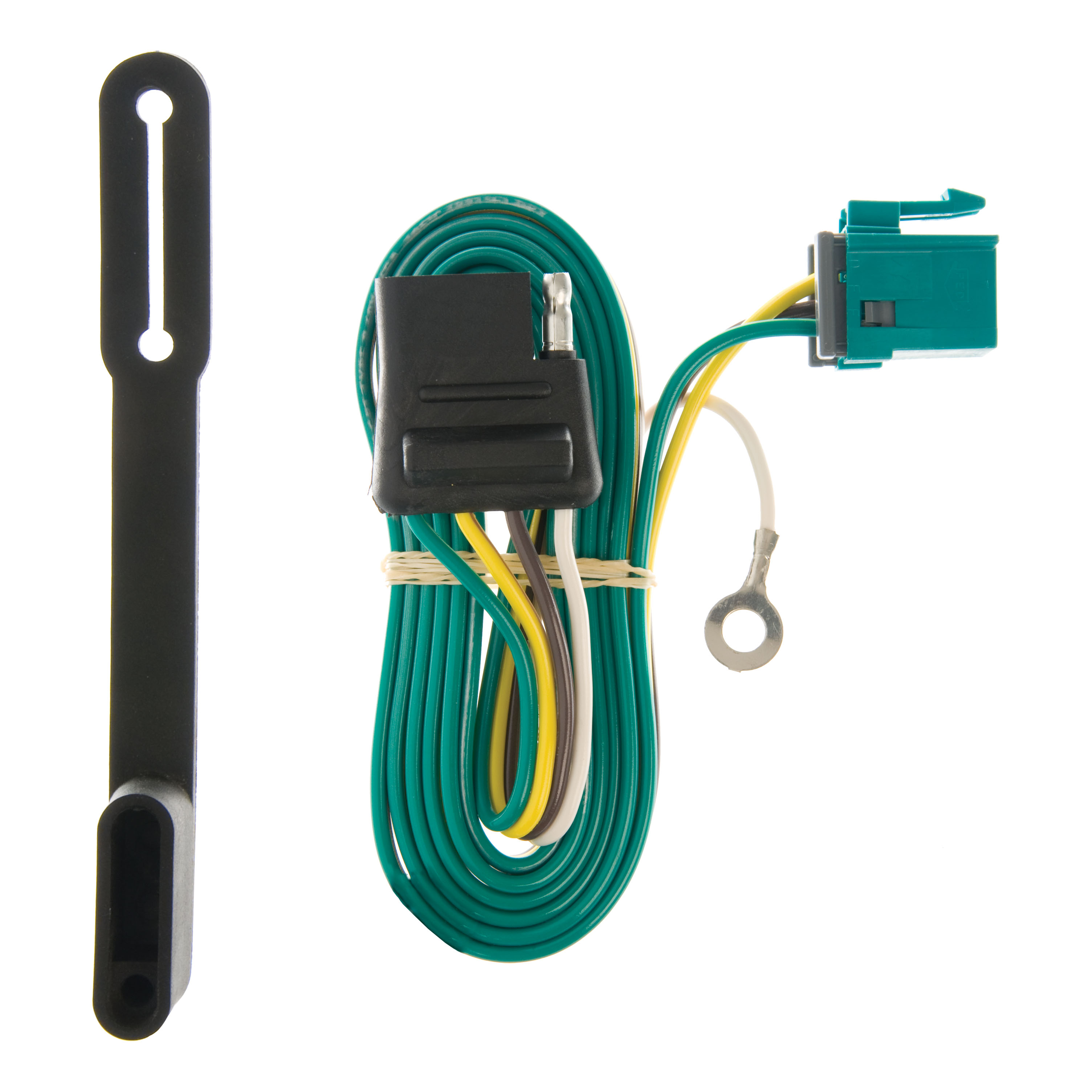

Trailer Wiring

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Chevy Express and GMC Savana 1500, 2500 and 3500 (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.

Features & Benefits

  • Plugs into existing OEM vehicle socket to provide a 4-way flat socket
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 4-way flat output connects tail lights, brake lights and turn signals
  • Dust cover included to keep connector clean when not in use
  • Backed by a limited one-year warranty

Installation Notes:

  • Main hitch body exposed
  • No drilling required

For more information please review the installation instructions: Click Here to view
