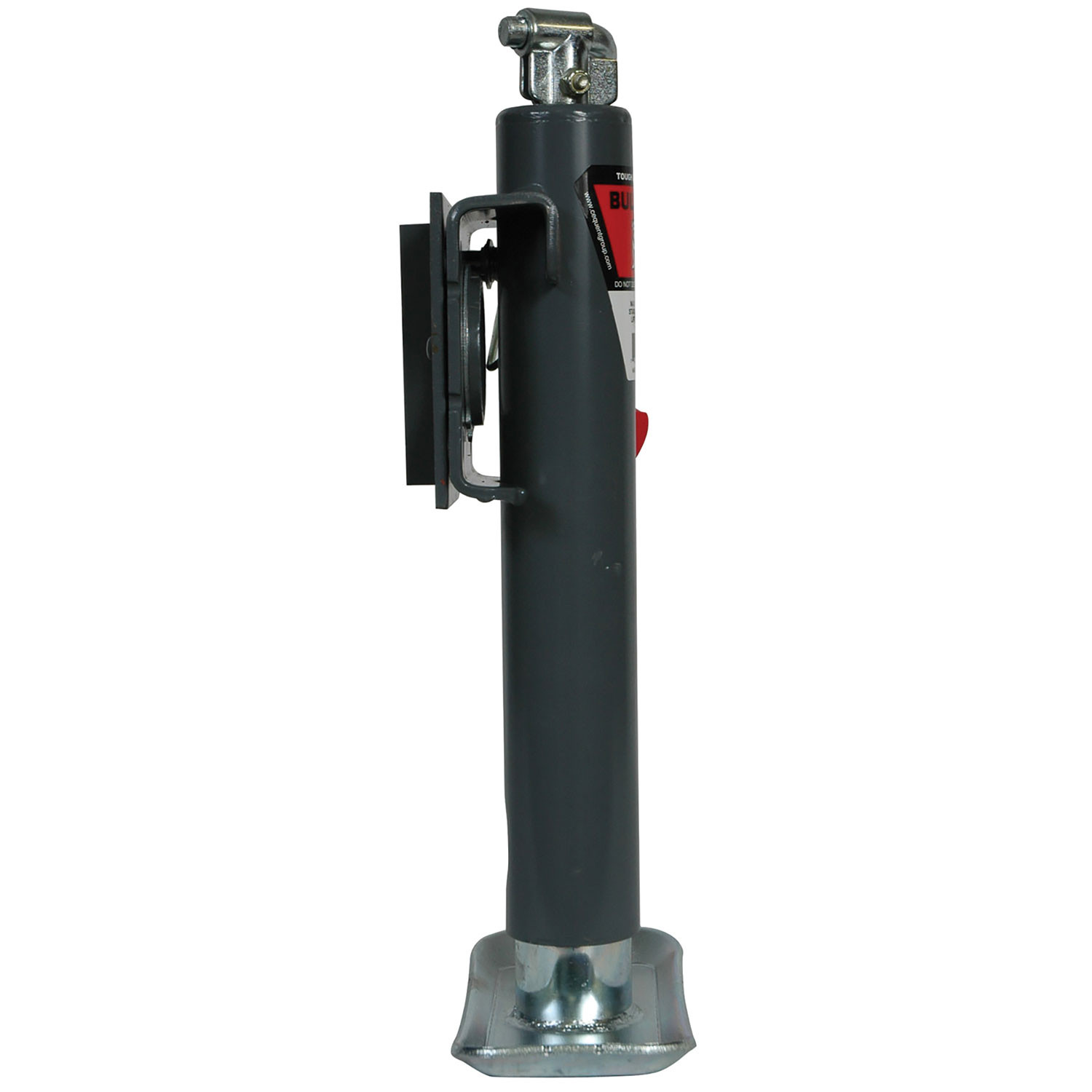

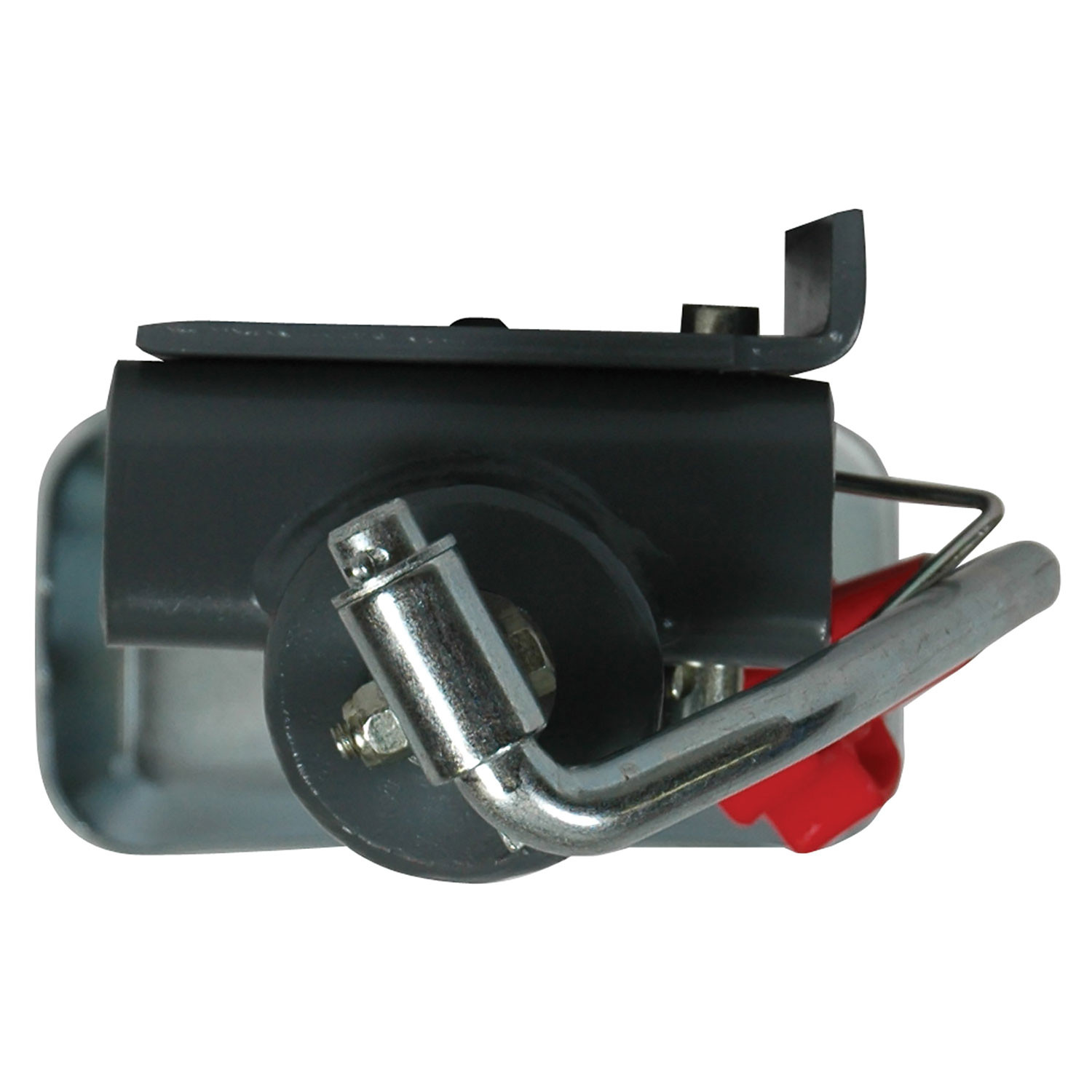

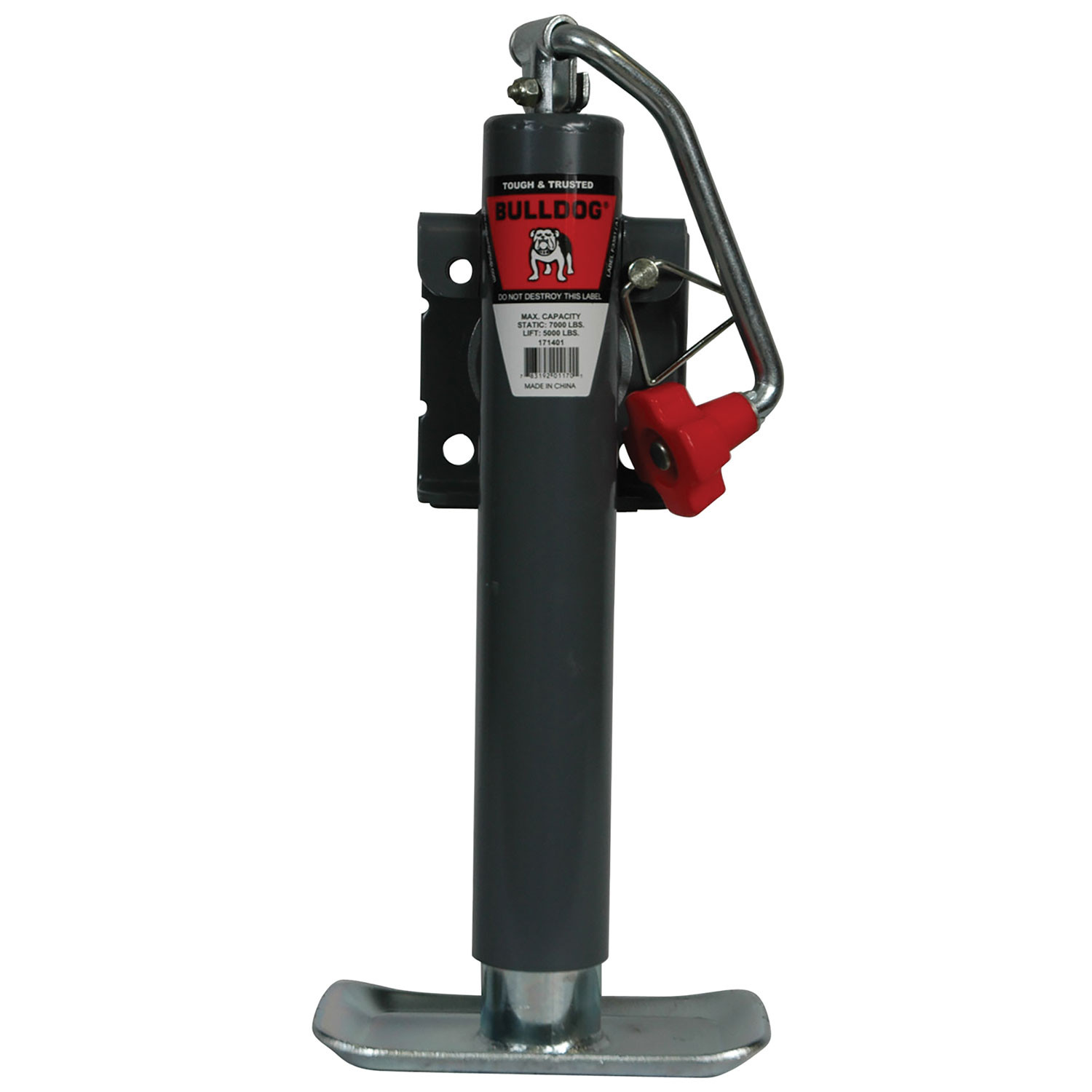

BULLDOG round jacks are recognized as the industry standard by leading agricultrual, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a centruy, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long term use at rated loads
- Precision fitted parts for extra stability
- A-Frame models listed have grey painted outer and inner tubes - All other models have grey painted outer and clear zinc inner tubes
- Custom finishes are available upon request
\n
\n \n \n Brand: | \n BULLDOG | \n
\n \n Part Number: | \n 171401 | \n
\n \n Warranty: | \n Limited 5 Year Warranty | \n
\n \n UPC: | \n 783192011701 | \n
\n \n Dimensions: | \n 4" x 7.5" x 17" (Shipping) | \n
\n \n Finish: | \n Gray Paint | \n
\n \n Weight: | \n 13.08 lbs | \n
\n \n Travel: | \n 10 in. | \n
\n \n Retracted: | \n 11.25 in. | \n
\n \n Cylinder Diameter: | \n 2.25 in. | \n
\n \n Extended: | \n 21.25 in. | \n
\n \n Foot Width: | \n 3.9 in. | \n
\n \n Clearance: | \n 4 in. | \n
\n \n Capacity: | \n 5,000 lbs. | \n
\n \n Foot Length: | \n 7.5 in. | \n

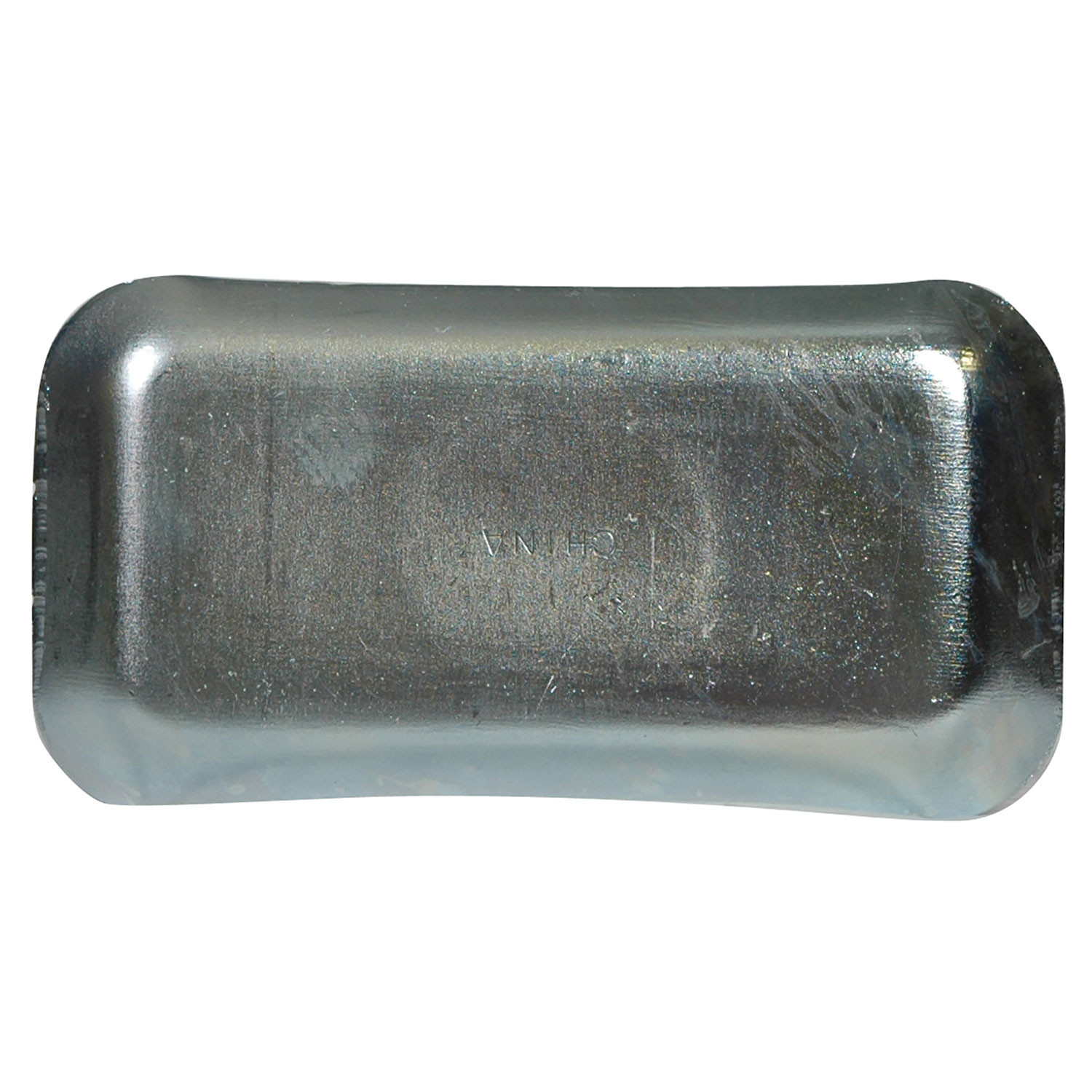

\n \n Foot Plate Size: | \n 7.5 in. x 3.9 in. | \n
\n \n Color: | \n Gray | \n
\n \n Quick Connect Type: | \n N/A | \n
\n \n Wheel Diameter: | \n N/A | \n
\n \n Attached Wheels: | \n No | \n
\n \n Speedy Lift: | \n No | \n
\n \n Wheel: | \n No | \n
\n \n Material: | \n Steel | \n
\n \n Handle Style: | \n Topwind | \n
\n \n Model No.: | \n TWS 171 DS | \n
