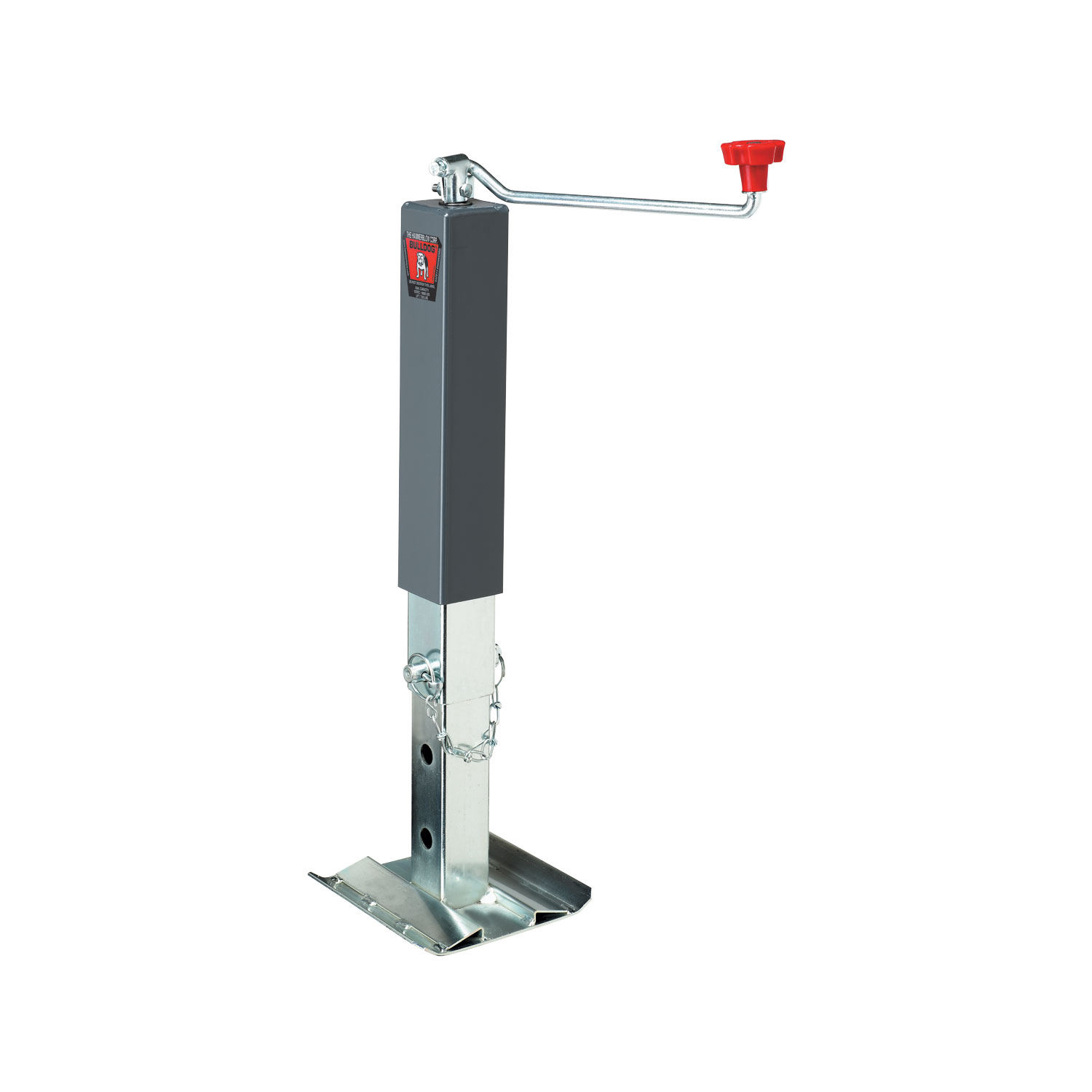

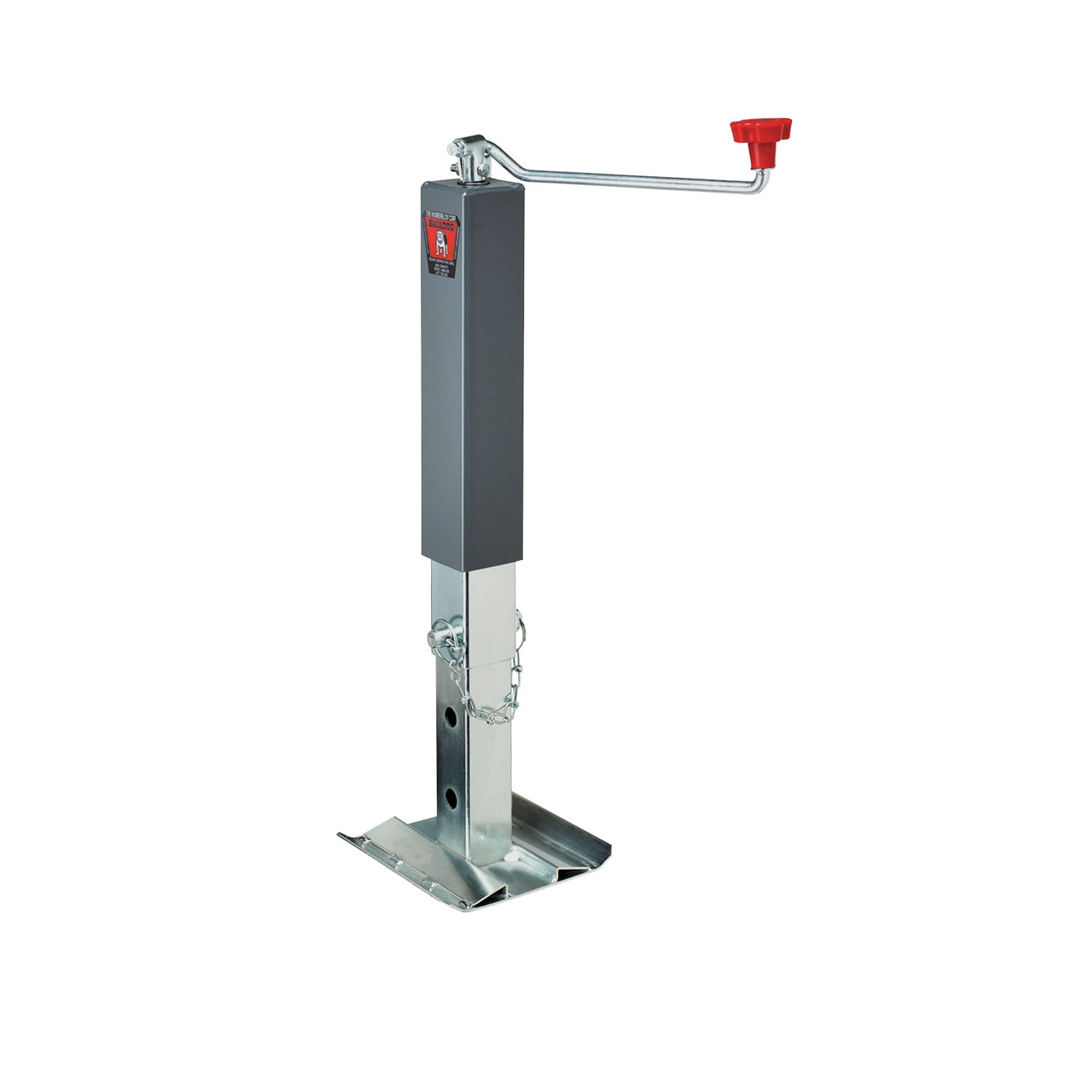

BULLDOG 10,000 lbs. support capacity square jacks "fills the gap" between 8,000 lbs. and 12,000 lbs. square jack product offerings. If the existing 8,000 lbs. support capacity square jacks are too small or the 12,000 lbs. support capacity square jacks are too big, look no further - your application and pricing requirements have been met! This is the highest quality and best performing jack available in the marketplace today, a total balance between capacity, speed, and effort.
- Heavy-gauge 3" square tubing allows for direct weld mounting wherever the application allows - no burn through
- Use thepainted outer tube as the final finish or primer
- Use the painted outer tube as the final finish or primer
- Zinc-plated inner tube and drop leg
- Heavy-duty, with reinforcement ribs, zero water retention
- Precision monufactured for long term reliability and smooth, easy cranking
- Grease zerk for easy lubrication as needed
- Oil-impregnated bushing for improved bearing and gear life
- Direct weld to outer tube is standard
- Sidewind models - 1:1.86 gear ratio
| Brand: | BULLDOG |
| Part Number: | 180304 |
| Warranty: | Limited 5 Year Warranty |
| UPC: | 783192023575 |
| Dimensions: | 8" x 8.5" x 22" (Shipping) |
| Finish: | Gray Paint and Clear Zinc Plat |
| Weight: | 25 lbs |
| Travel: | 10 in. |
| Capacity: | 10,000 lbs. |
| Retracted: | 18.18 in. |
| Extended: | 38.31 in. |
| Foot Width: | 8 in. |
| Foot Length: | 8.5 in. |
| Foot Plate Size: | 8.5 in. x 8 in. |
| Color: | Gray |
| Quick Connect Type: | N/A |
| Wheel Diameter: | N/A |
| Attached Wheels: | No |
| Speedy Lift: | No |
| Material: | Steel |
| Handle Style: | Topwind |
| Model No.: | TWS 180 DL-BQ |
| Gears Included: | Yes |
| Handle Bushing Included: | Yes |
| Roll Pins Included: | Yes |
| Washers Included: | Yes |
