BRAND: DRAW-TITE
WARRANTY: LIMITED LIFETIME WARRANTY
UPC: 016118451566
FINISH: Black Powder Coat
PIN DIAMETER: 0.625 IN.
TONGUE WEIGHT CAPACITY: 1,200 LBS.
DROP LENGTH: 1.75 IN.
CAPACITY: 12,000 LBS.
RECEIVER SIZE: 2.5 IN.
SHANK DIAMETER: 2.5 IN.
PLATE SIZE: 6 IN. X 5 IN.
DRAW BAR MAXIMUM LENGTH: 7.75 IN.
SHANK LENGTH: 7.75 IN.
COLOR: BLACK
BALL CAPACITY: N/A
BALL DIAMETER: N/A
HOOK CAPACITY: N/A
DRILLING REQUIRED: NO
MOUNTING HARDWARE INCLUDED: NO
ATTACHMENT LOCATION: RECEIVER HITCH
MOUNTING TYPE: RECEIVER HITCH
MATERIAL: STEEL
RECEIVER INCLUDED: YES
LENGTH: 7-3/4 IN.
DROP: 6 IN.
RISE: 5 IN.
HOLE SIZE: 3 IN.

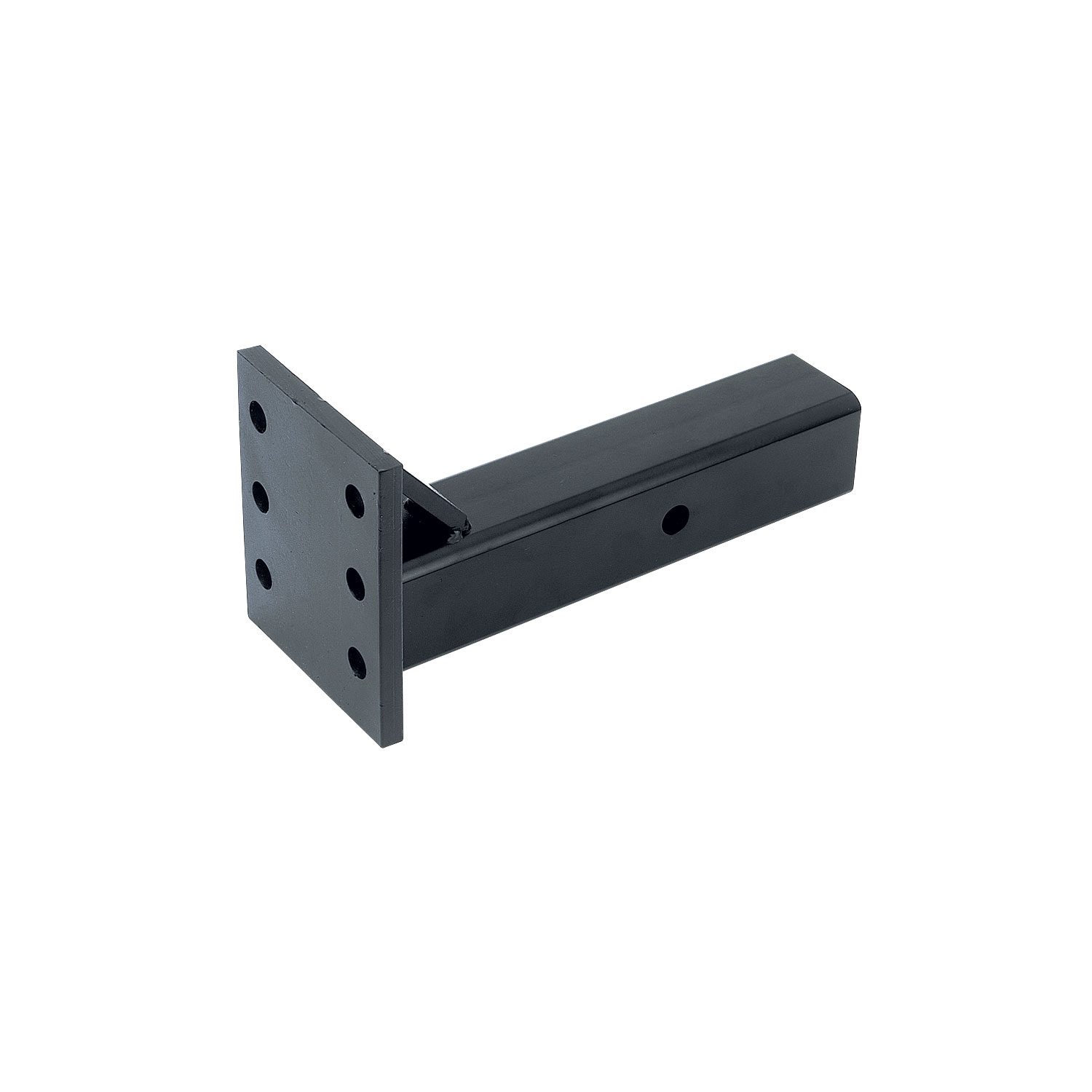

The REESE titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 2-1/2 In. x 2-1/2 In. hitch box opening. The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.
