BRAND: DRAW-TITE
WARRANTY: LIMITED LIFETIME WARRANTY
UPC: 016118072136
FINISH: Black Powder Coat
PIN DIAMETER: 0.625 IN.
CAPACITY: 18,000 LBS.
TONGUE WEIGHT CAPACITY: 2,000 LBS.
RECEIVER SIZE: 2.5 IN.
SHANK DIAMETER: 2.5 IN.
DROP LENGTH: 3.5 IN.
PLATE SIZE: 7.25 IN. X 5 IN.
DRAW BAR MAXIMUM LENGTH: 8.5 IN.
SHANK LENGTH: 8.5 IN.
COLOR: BLACK
BALL CAPACITY: N/A
BALL DIAMETER: N/A
HOOK CAPACITY: N/A
DRILLING REQUIRED: NO
MOUNTING HARDWARE INCLUDED: NO
ATTACHMENT LOCATION: RECEIVER HITCH
MOUNTING TYPE: RECEIVER HITCH
MATERIAL: STEEL
RECEIVER INCLUDED: YES
LENGTH: 8-1/2 IN.
DROP: 7-1/4 IN.
RISE: 5 IN.
HOLE SIZE: 4 IN.

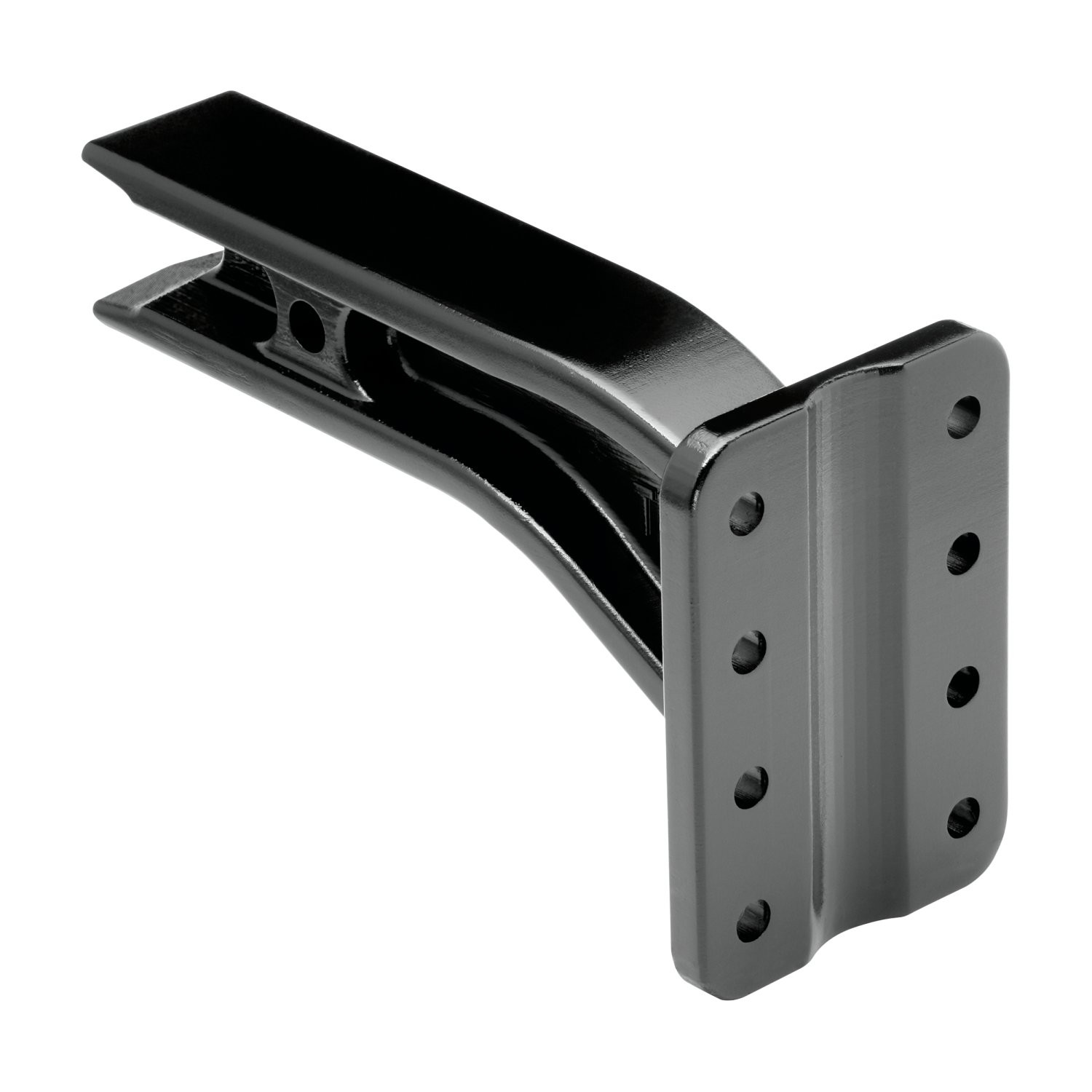

The REESE Titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 2-1/2 In. x 2-1/2 In. hitch box opening. The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.
