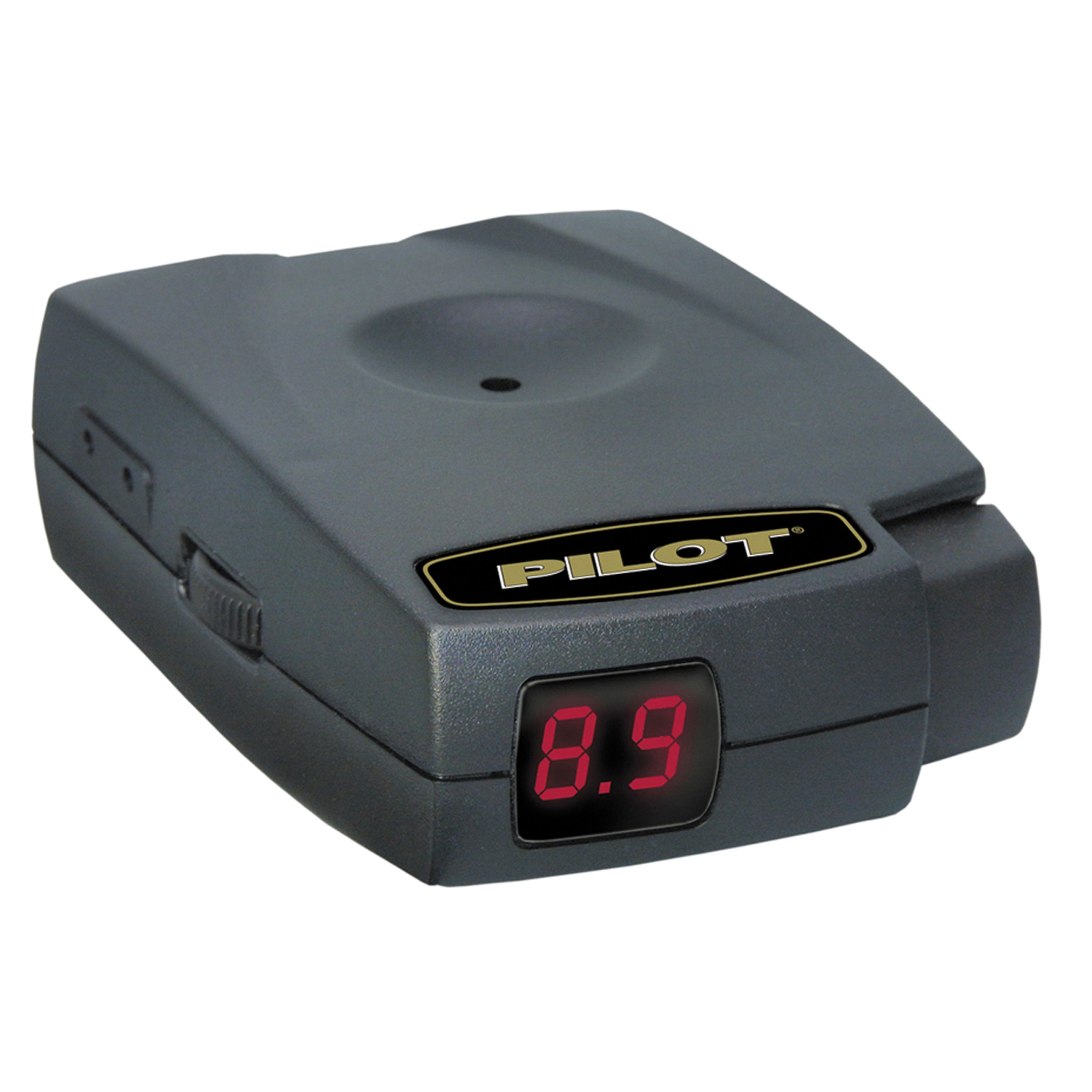

The Pro Series Pilot trailer brake controller is a great option for those who tow light loads at all hours of the day and night, in all types of weather. Its dark, smokey lens makes it ideal for direct light applications, creating optimum visibility to read the large, two-digit display. The Pilot brake controller kit is a time-based controller that works by electronically connecting your vehicle and your trailer. When you hit the brakes in your tow vehicle, it generates an output signal that ramps up, or increases over a period of time, applying braking power to your trailer at a fixed rate. Its large, easy-to-read dual digit display shows power output and the aggressiveness with which the controller applies the brakes. The Pilot also has manual override to help you brake safely when an unexpected stop pops up. It features advanced internal circuit protection, real time diagnostics, short circuit protection, and loss of ground. Because the Pilot is time-based, it can be mounted in any direction. Plus, the Plug Play feature allows for quick and easy connection with your vehicle?s wiring. The Pilot trailer brake controller works with 1-3 axle trailers, comes with all the mounting hardware needed for installation, and is backed by a limited 1-year warranty.

• TIME-DELAYED DIGITAL BRAKE CONTROLLER: Applies braking power that ramps up, or increases over a period of time, at a fixed rate. This makes the Pilot trailer brake controller kit ideal for basic, light-duty towing needs.
• EASILY INSTALL: The Pro Series Pilot trailer brake controller kit has a Plug Play connection for easy installation. As a time-based controller, the unit can be installed above or below the dash, in any direction, as long as it?s within reach of the driver.
• EASY-TO-READ INDICATOR: This controller has an LED light display that changes from green to red to indicate trailer connectivity and power output.
• MANUAL BRAKING AVAILABLE: If you ever need to manually apply the brakes, simply move the manual control lever to the left. The Pilot will apply power to your trailer?s brakes up to the amount of power previously set.
• VERSATILE: The Pro Series Pilot timed trailer brake controller is compatible with a wide range of vehicles including Ford, GM, Chevy, Dodge, RAM, Toyota, Jeep, and more with 2, 4, and 6 brakes (1-3 axles). Vehicle-specific Tekonsha Plug Play brake controller wiring harness sold separately.
