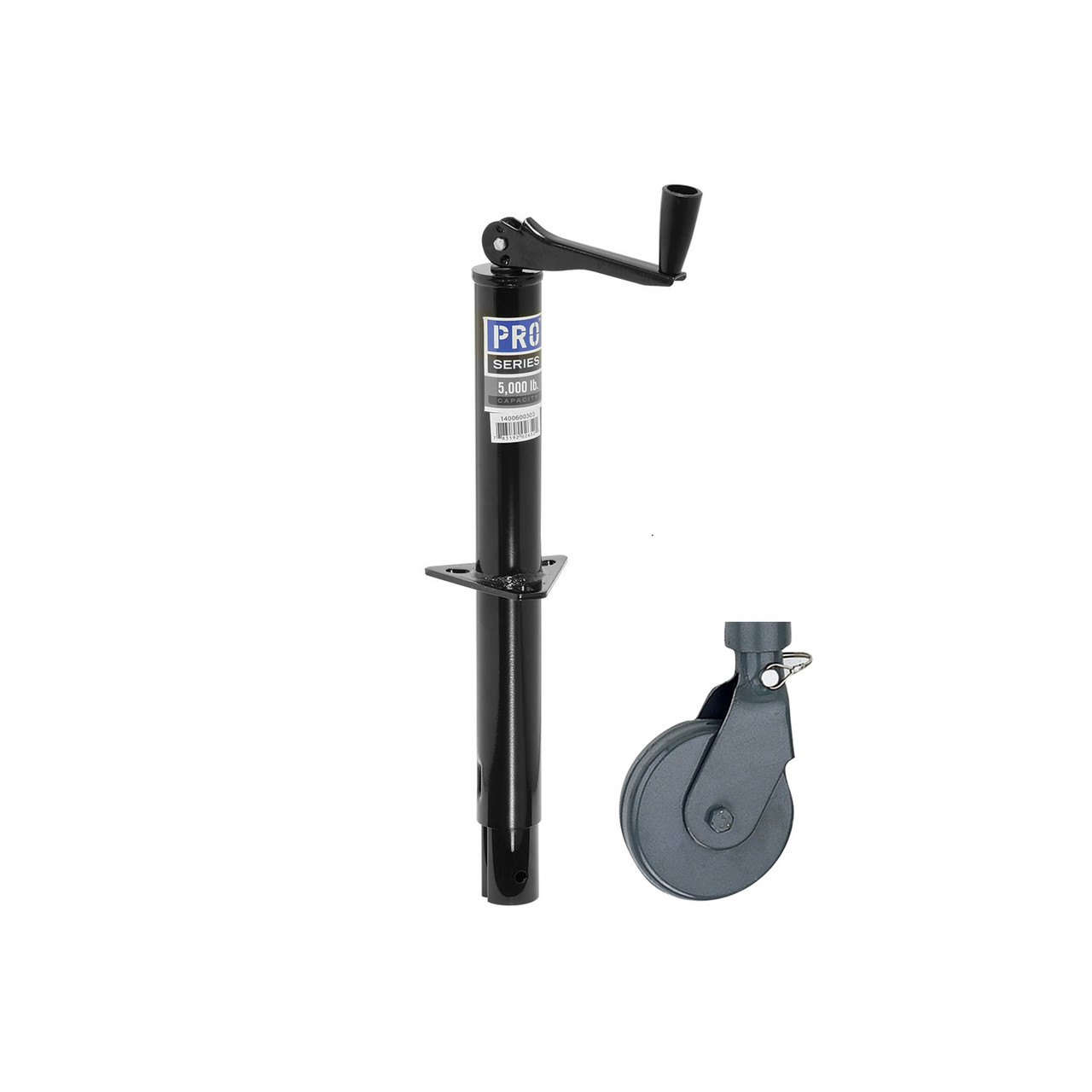

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Black painted outer and inner tube

• Limited 1-year warranty



Specifications:

• Lift Capacity: 5,000 lbs.

• Retracted Bracket Height: 10.80" from bracket to bottom

• Extended Bracket Height: 25.80"

• Travel/Lift: 15"

• Clearance: 14.55" from bracket to top

• Works with any standard A-Frame mount

• Inner tube diameter: 2"

• Outer tube diameter: 2-1/4"

• 6" Steel Caster Wheel w/ Pin Included

  Caster Wheel Capacity: 1,000 lbs
