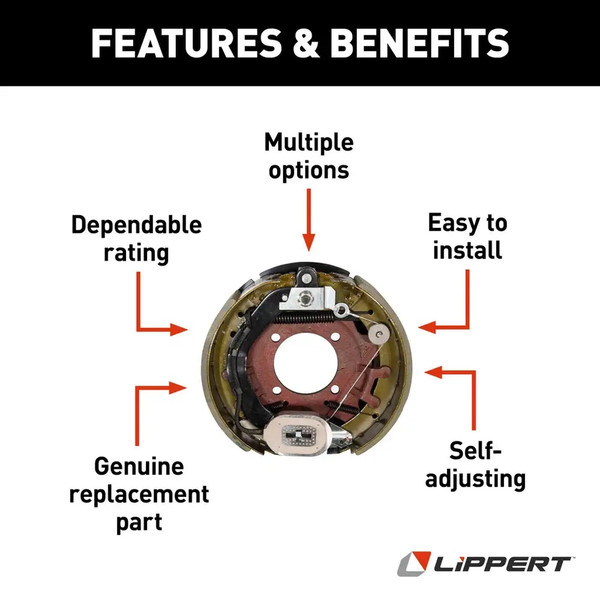

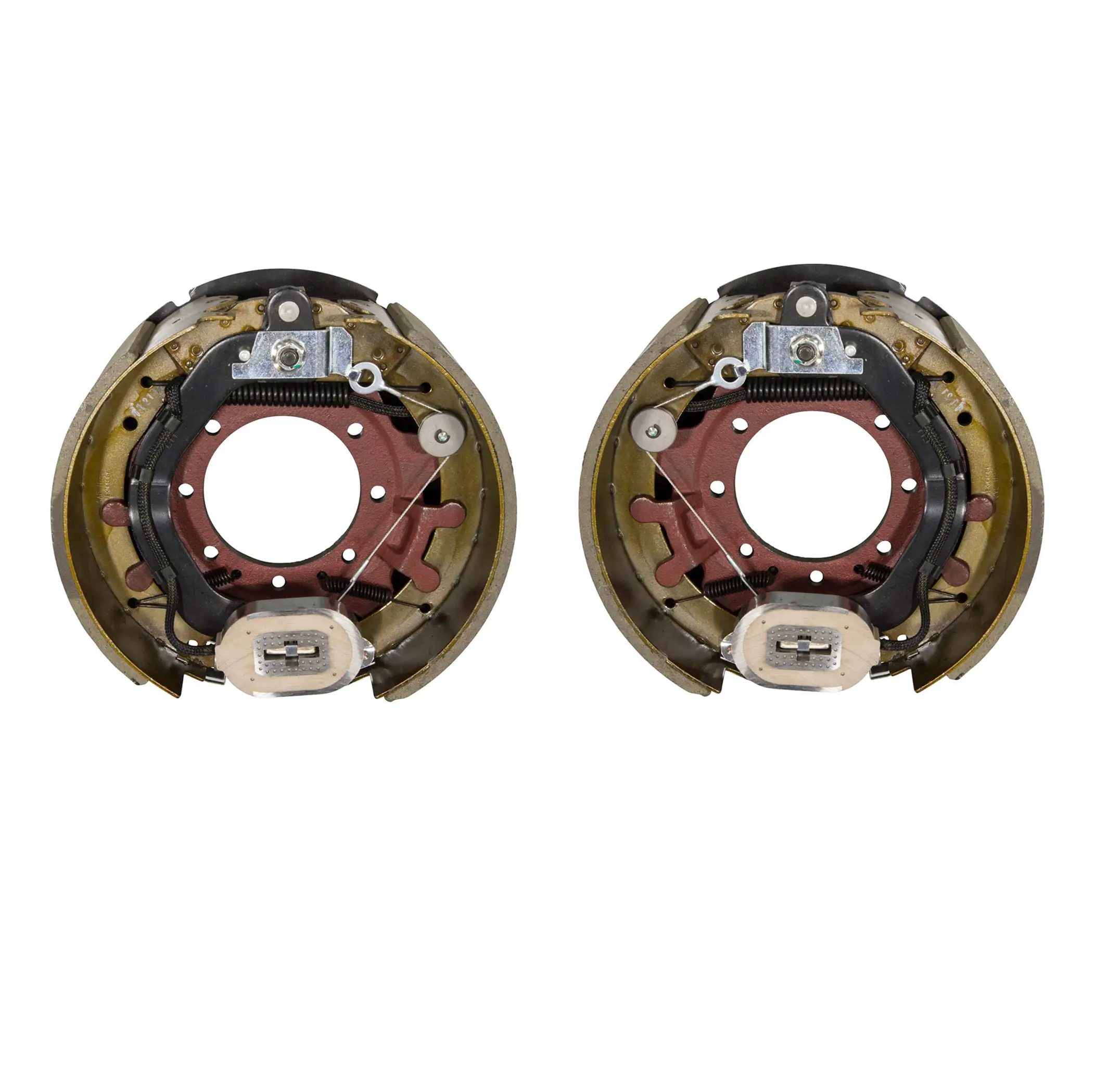

This kit includes Left & Right Lippert , 12.5" x 5" - 12,000 lbs Electric Brake Assemblies

• Replacement standard electric brake assembly with park
• Self-adjusting configuration eliminates the need for manual adjustment
• For axles rated to 12,000 lbs.
• Seven-bolt mounting pattern
• Easy, DIY installation (hardware sold separately)
• For 16", 16.5", 17" or 17.5" wheels
• Brake size: 12" x 5"
• New electric drum brakes will require a break-in period to achieve full performance.


If you need to replace your electric brake assembly, go with a trusted name. Get a genuine Lippert replacement part! Electric brake assemblies are easier to install than hydraulic brakes, and self-adjusting brakes mean you never have to manually adjust them after the initial adjustment. Forward self-adjusting brakes self-adjust during every forward stop, providing up to 50 percent better braking distance and preventing premature brake line and magnet wear.

This electric brake assembly is compatible with 16-17.5? wheels, made for 12,000-lb. axles, and goes on the left side of the trailer (roadside / driver side).

This is a replacement electric brake assembly for RVs and other trailers. Please reference your original equipment label before purchasing. Be sure to inspect and maintain your brakes periodically. Worn-out brakes can lead to axle failure.
